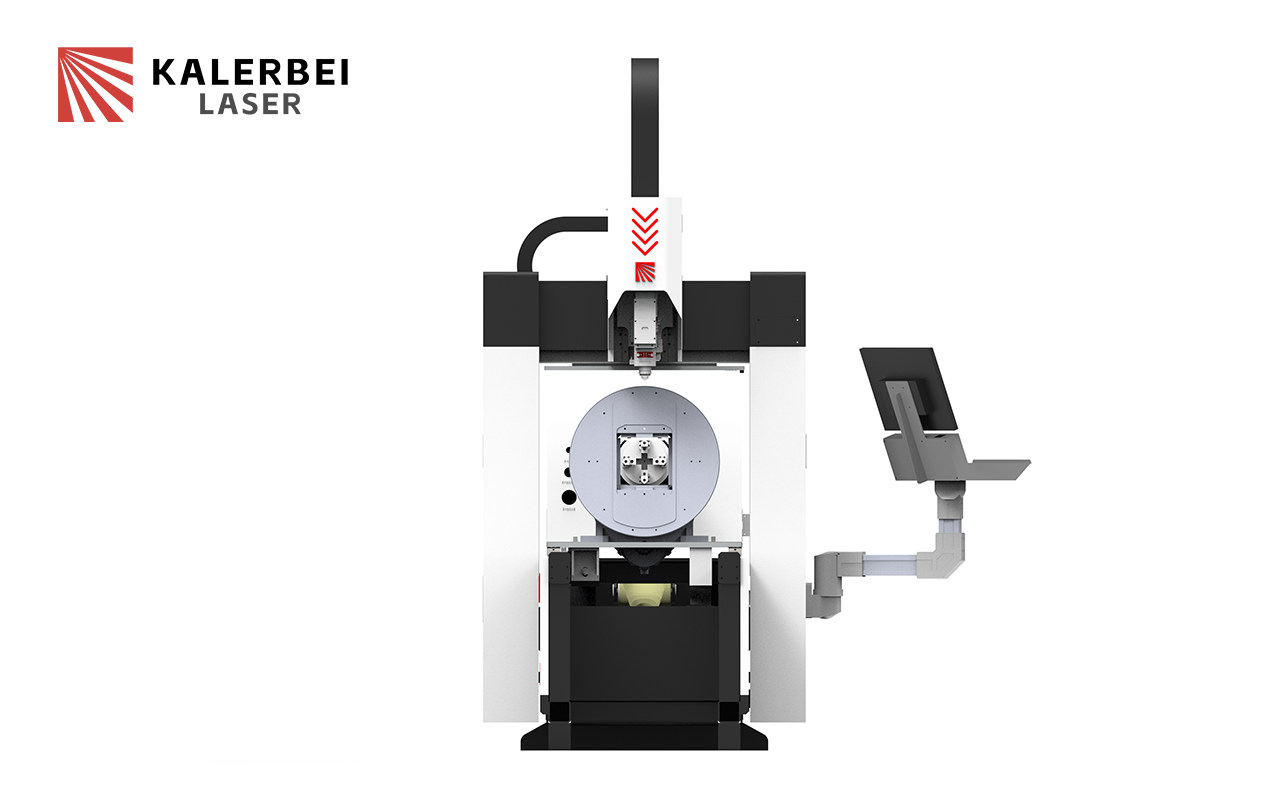

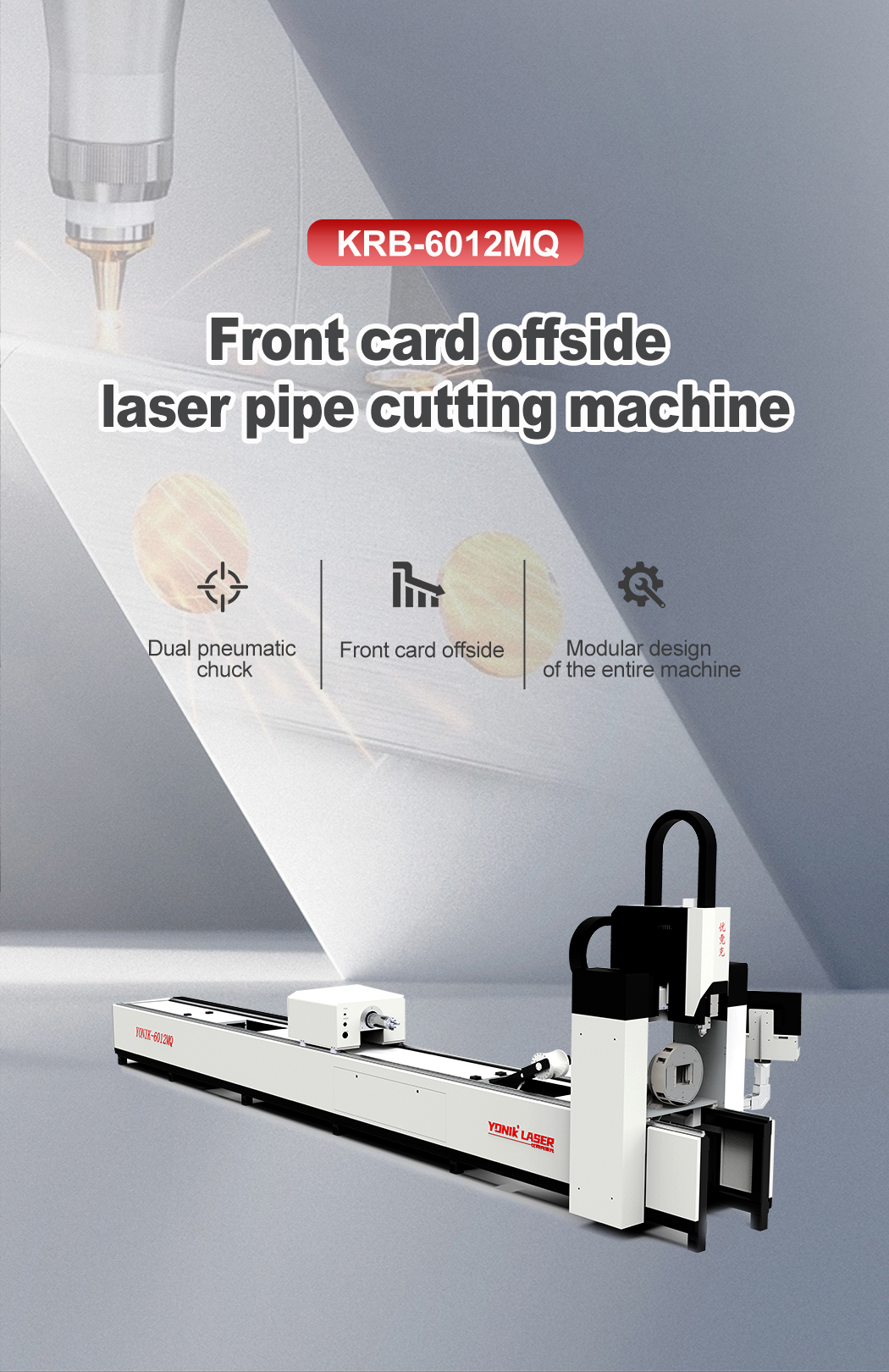

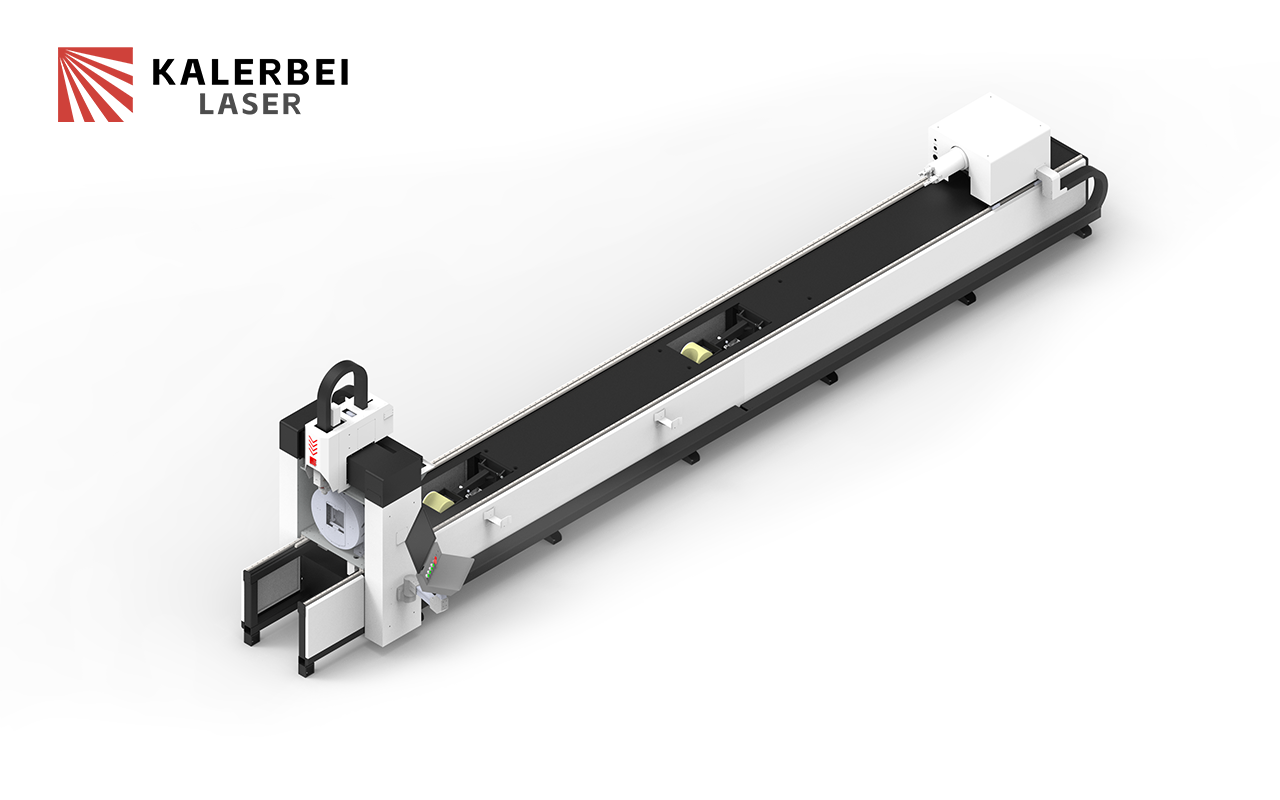

Product Description

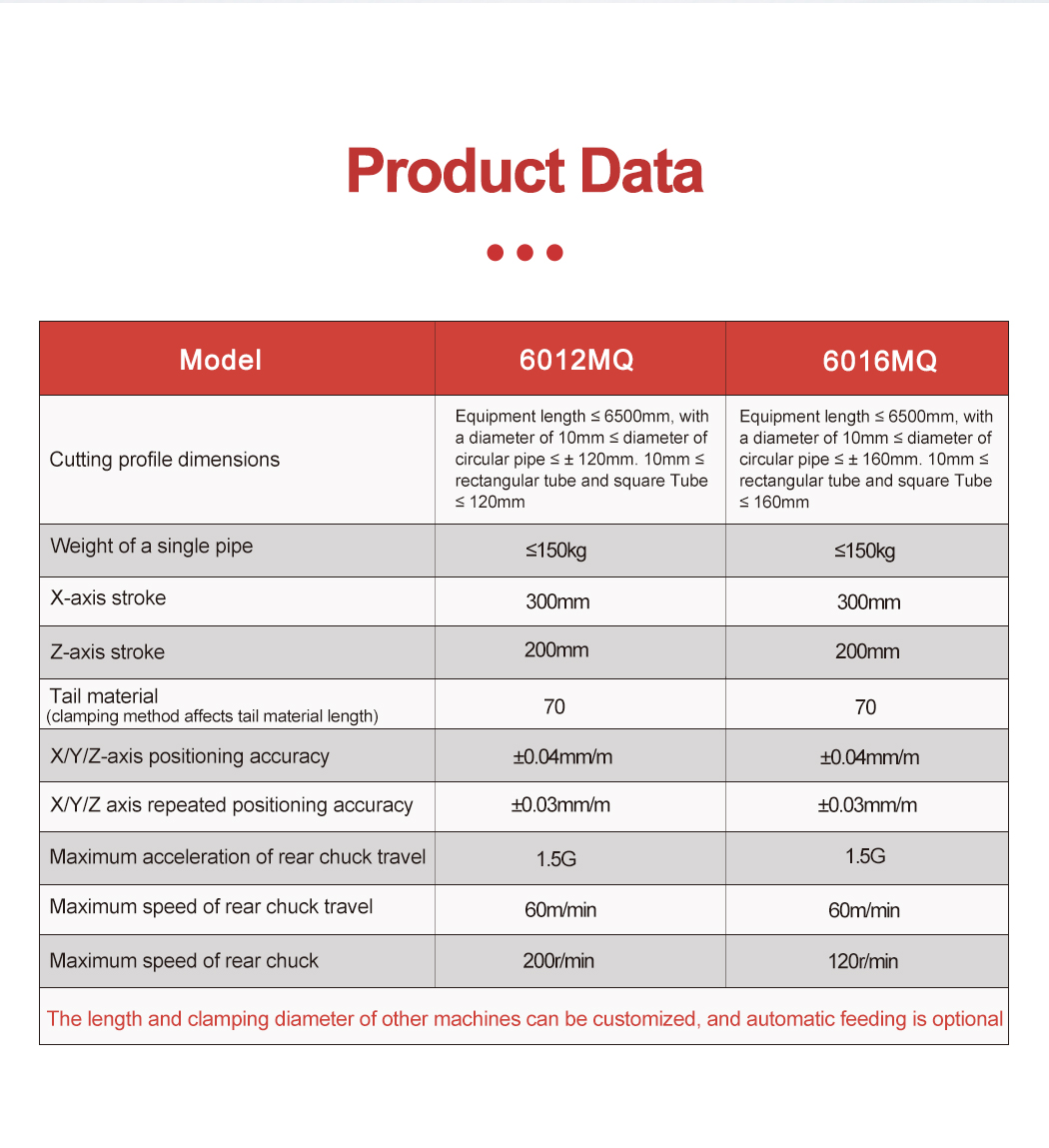

model | KRB-6012MQ-1500W | unit |
Processing dimensions of pipes | 10≤Circular tube diameter and square tube side length≤120，L≤6000； | mm |
X-axis stroke | 200 | mm |
Y-axis stroke | 6500 | mm |
Z-axis stroke | 200 | mm |
X. Y-axis positioning accuracy | ±0.05/1000mm | mm |
X. Y-axis repeated positioning accuracy | ±0.03 | mm |
acceleration | 1G | m/s² |
Y-axis maximum operating speed | 60 | m/min |
Maximum chuck speed | 60 | r/min |

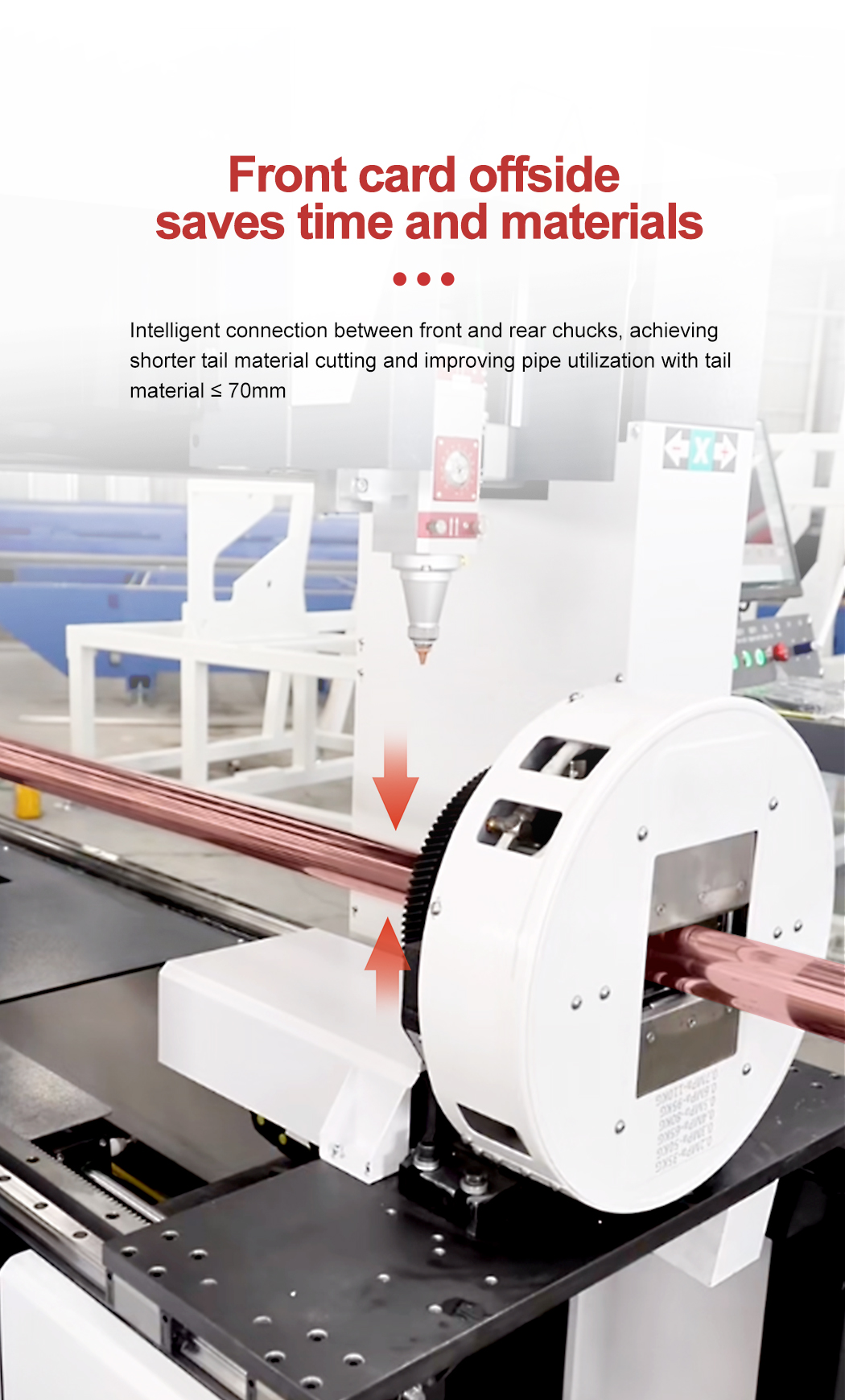

Tail material length | 100mm | mm |
Host appearance (length, width, height) | Length 8500 x Width 1700 x Height 2000mm | mm |
laser power | 1500 | w |
control system | Shanghai Fangling | |
Whole machine power | 12 | KW |
Power supply requirements | 220V/50Hz | V |
