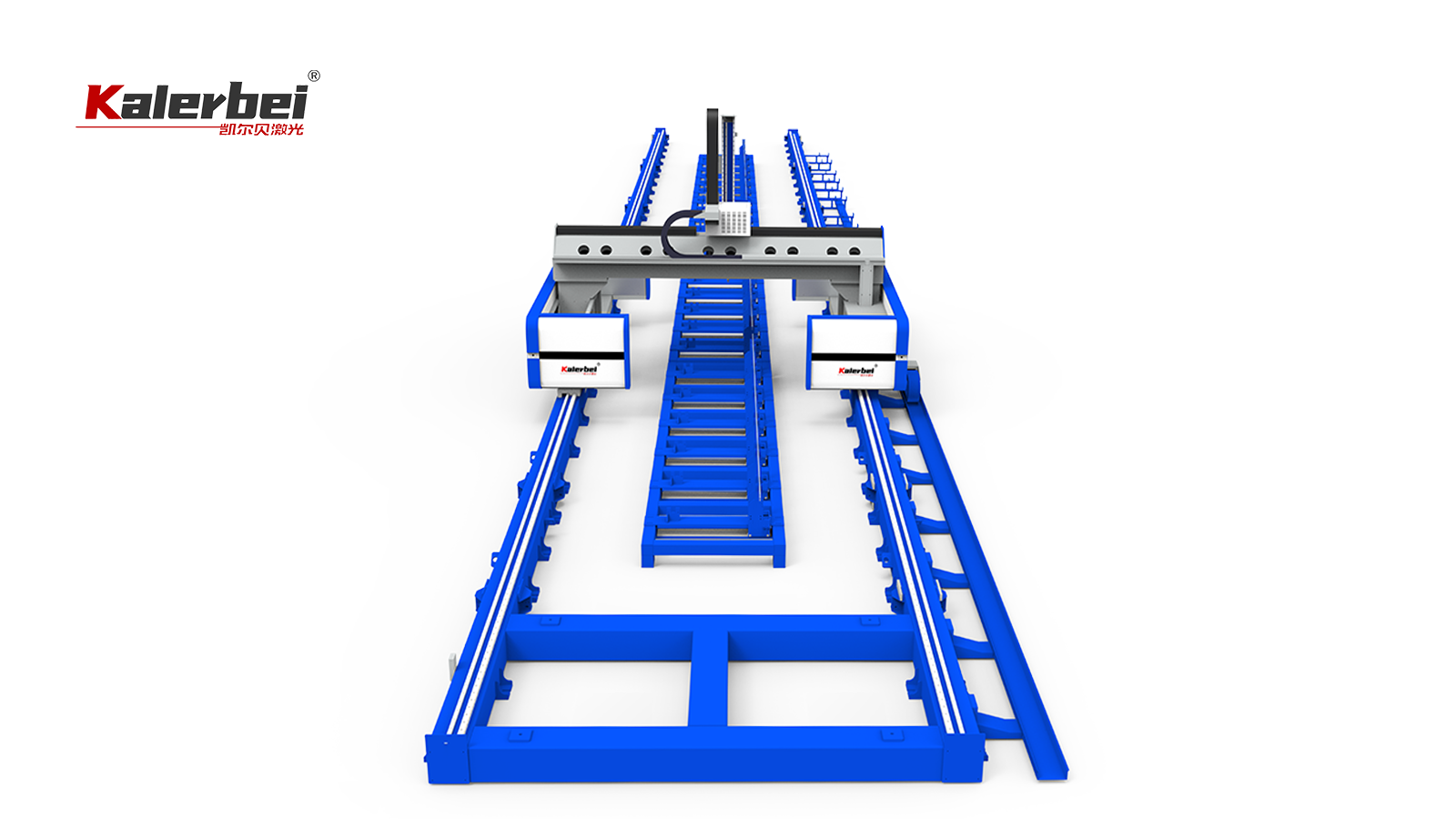

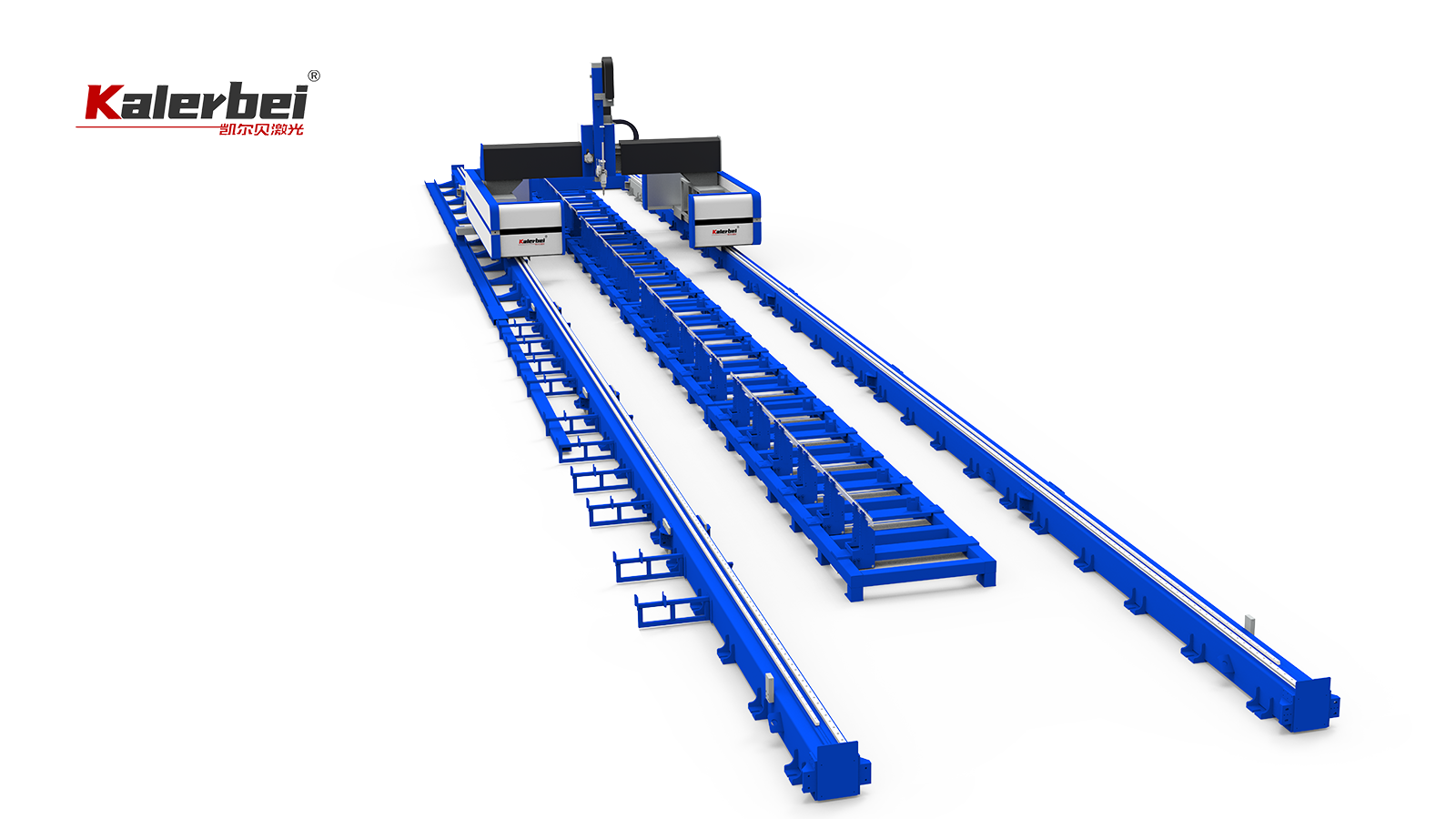

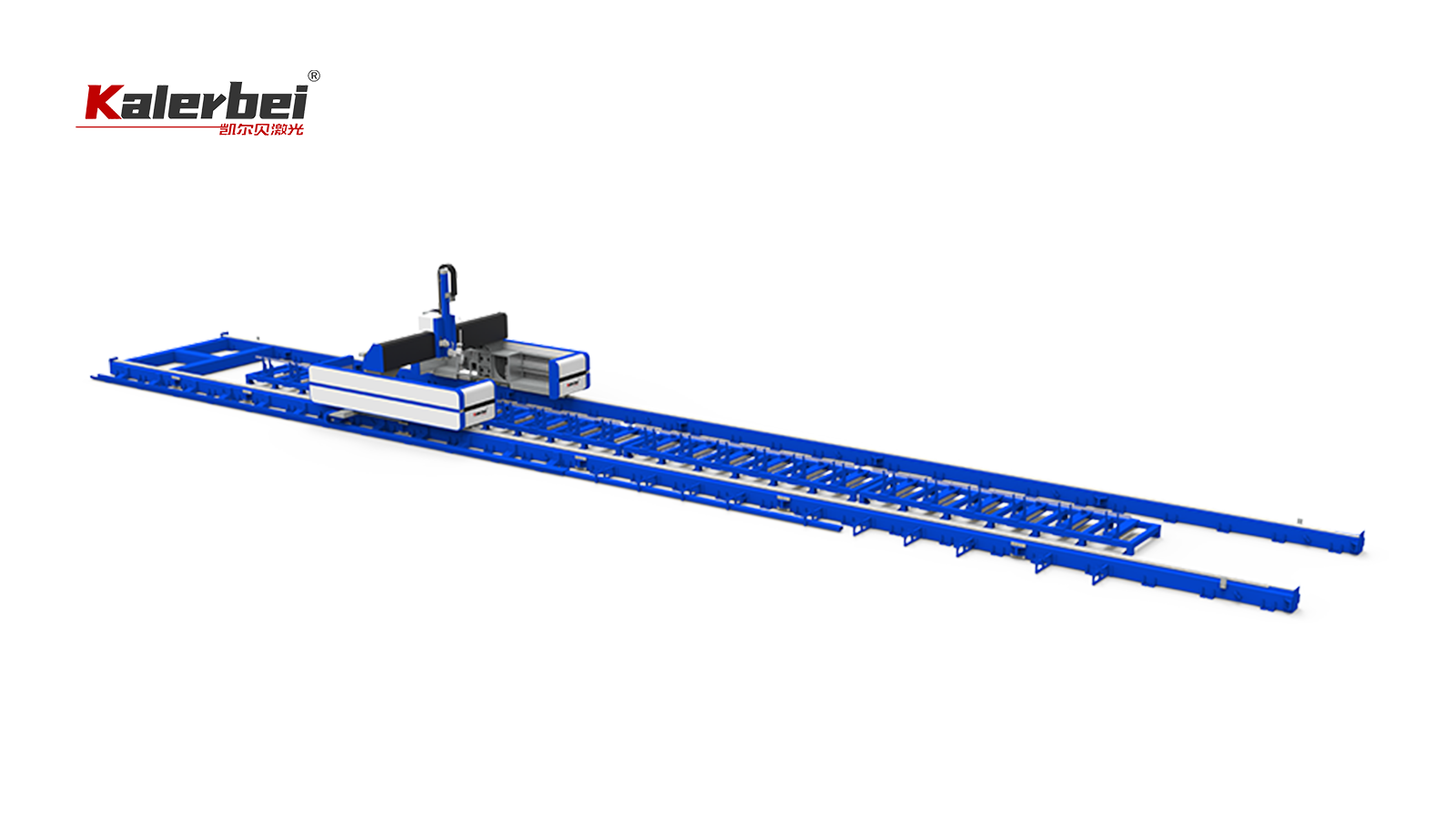

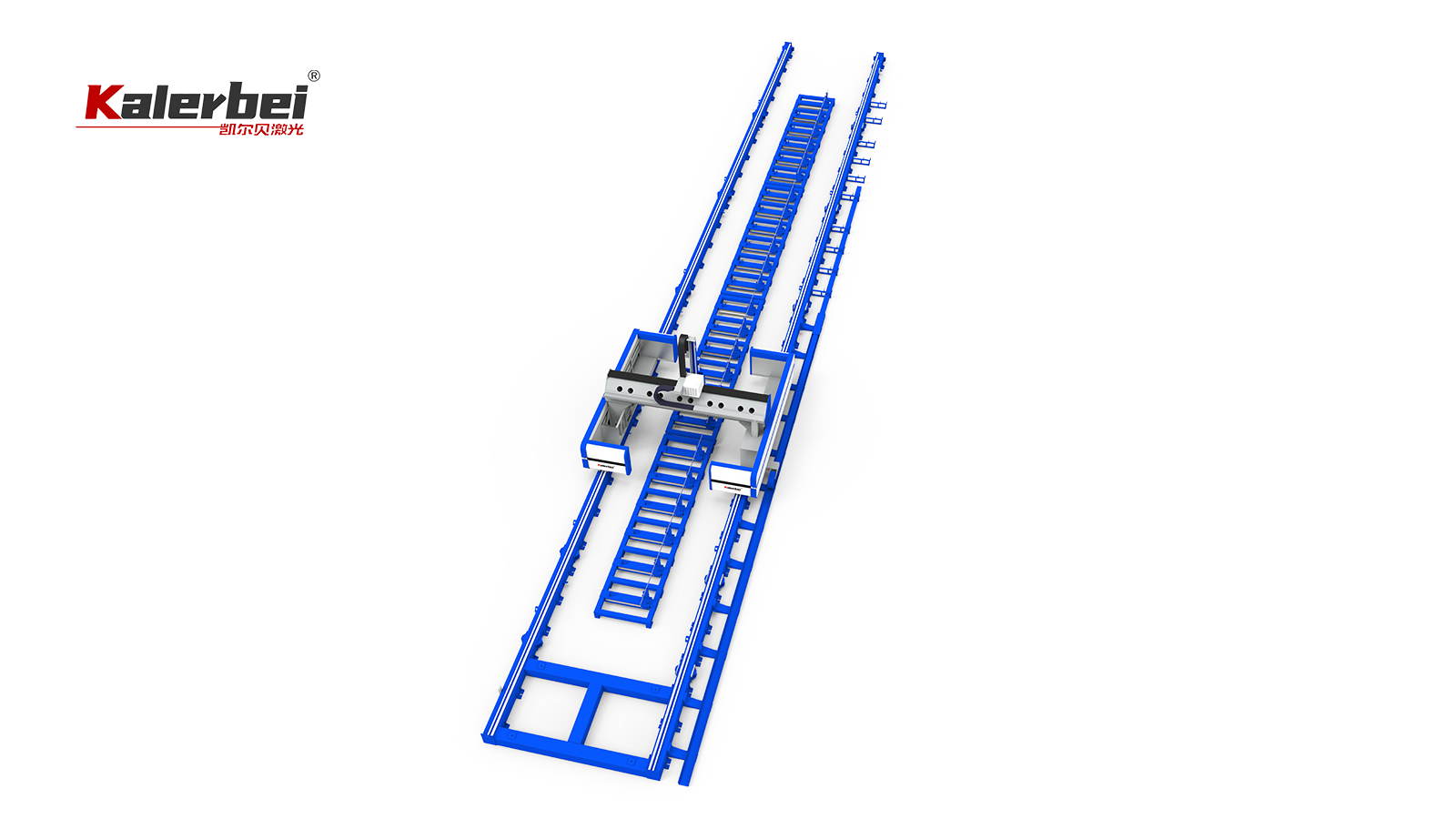

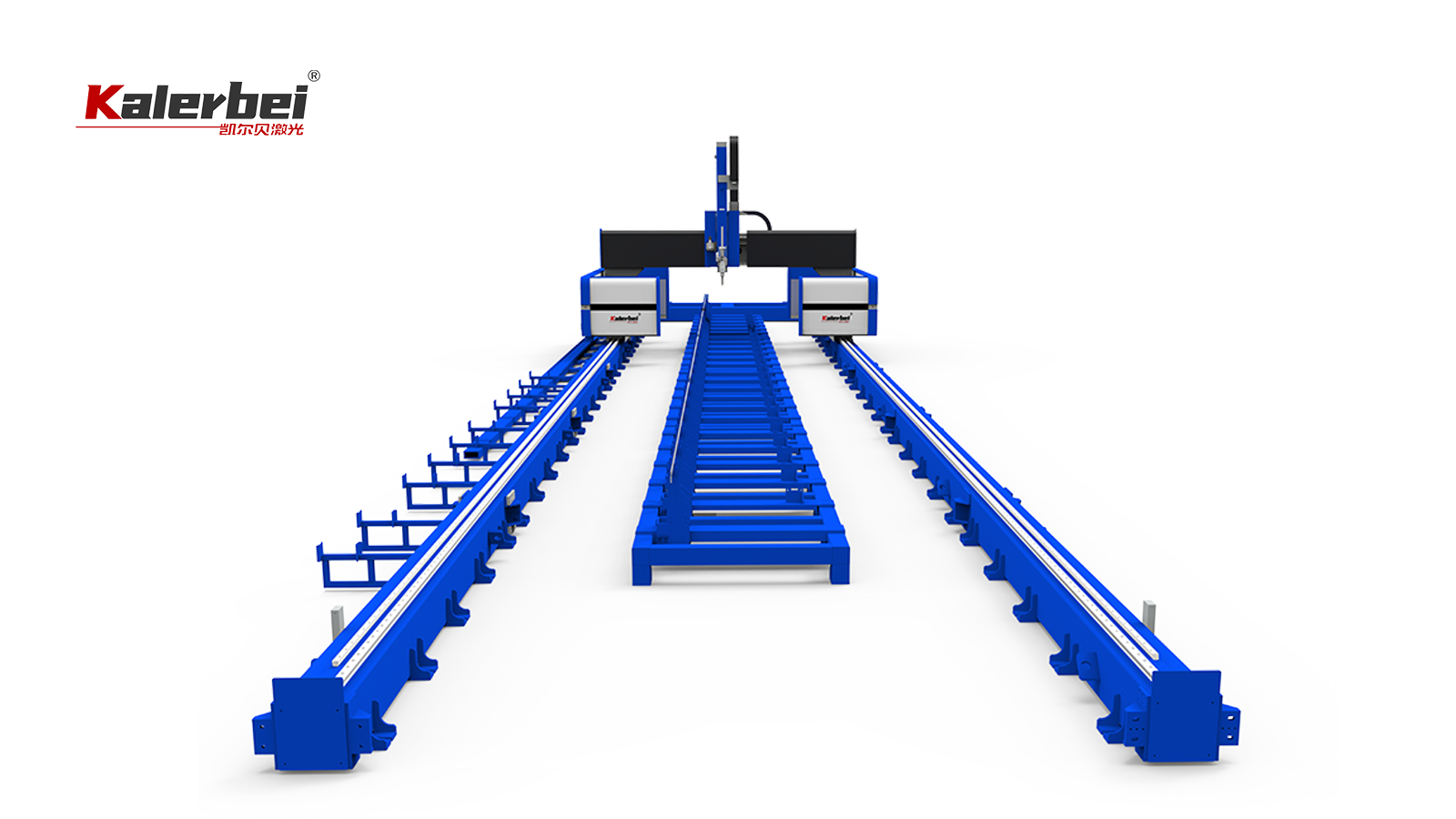

26030HC Series Fiber Laser H Beam Profile Cutting Line

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
This laser cutting production line for steel profiles is specifically designed for the steel structure industry, enabling efficient cutting of various profiles such as H-beams, I-beams, channel steel, and angle steel. Equipped with a high-power laser, it produces clean, slag-free cuts and supports 0-45° beveling in a single pass, eliminating the need for secondary processing. The equipment features a heavy-duty, aging-resistant bed, ensuring structural stability and long-lasting precision. It is equipped with a long-stroke processing system and automated feeding mechanism, making it suitable for mass production of large profiles. Compatible with both profile and pipe processing, it significantly improves material handling efficiency, reduces labor and rework costs, and offers stable performance and easy operation. It is a high-quality cutting device for steel structure companies seeking to improve quality and efficiency and upgrade to intelligent manufacturing.

  • 26030HC

  • kelbei

Availability:
Quantity:
Inquire Add to Basket

Product Description

1、Specialized Profile Design for Broad Compatibility

Specialized in custom manufacturing of various steel structural profiles including H-beams,  I-beams, channel sections, and angle steels, with compatibility for processing multiple pipe  specifications, providing comprehensive one-stop solutions for all steel structure material  cutting requirements.

2. Precision Cutting with Integrated Slope Opening

High-power laser cutting produces smooth cutting surfaces free of burrs and slag,  supporting one-time formation of multi-angle bevels without requiring secondary grinding,  significantly reducing processing time.

3. Heavy-duty fuselage: Stable and durable

The entire welded heavy-duty bed has undergone aging treatment, ensuring抗震  resistance without deformation and maintaining stable precision during long-term operation.  Featuring a long-stroke design, it is ideal for large-scale continuous production.


4. Intelligent and efficient – Cost reduction and efficiency  improvement

Equipped with a specialized profile programming system, it features user-friendly operation  and high automation, minimizing manual intervention, effectively reducing production costs,  and enhancing workshop productivity.


NO

26030HC

Parameter

1

Working Area

Height: 200mm≤h≤1500mm

Width:100≤b≤2000mm

Length≤12500mm

2

X-axis stroke

3000mm

3

Y-axis stroke

26000mm

4

Z-axis stroke

900mm

5

X/Y--axis

Positioning Accuracy

±0.35mm

6

X/Y-axis

Repeated Positioning Accuracy

±0.08mm

7

X/Y/Z-axis

Max Acceleration Speed

25m/min

8

A-axis swing angle

±90°

9

C-axis swing angle

±90°

10

Max Acceleration Speed

0.2G

11

Number of phases

3

12

Power supply specifications

380V/50HZ

13

Overall protection rating

IP54

14

Laser power

20kW
