Product Description

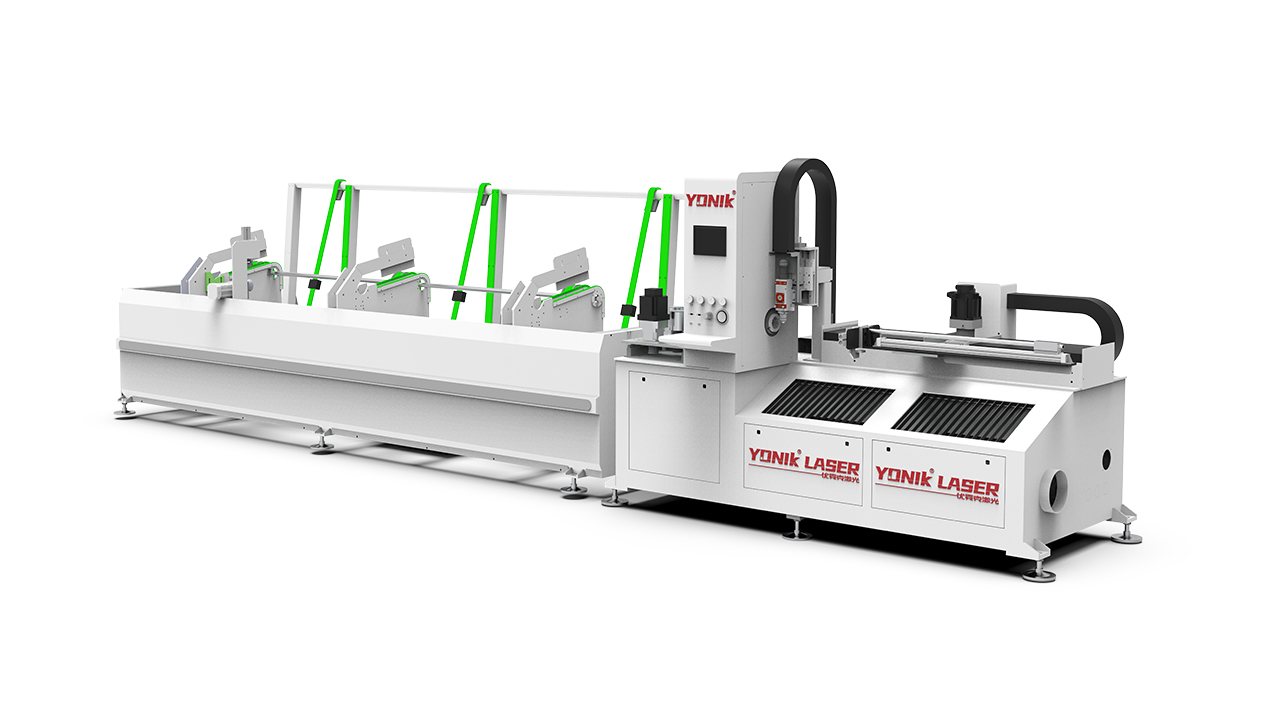

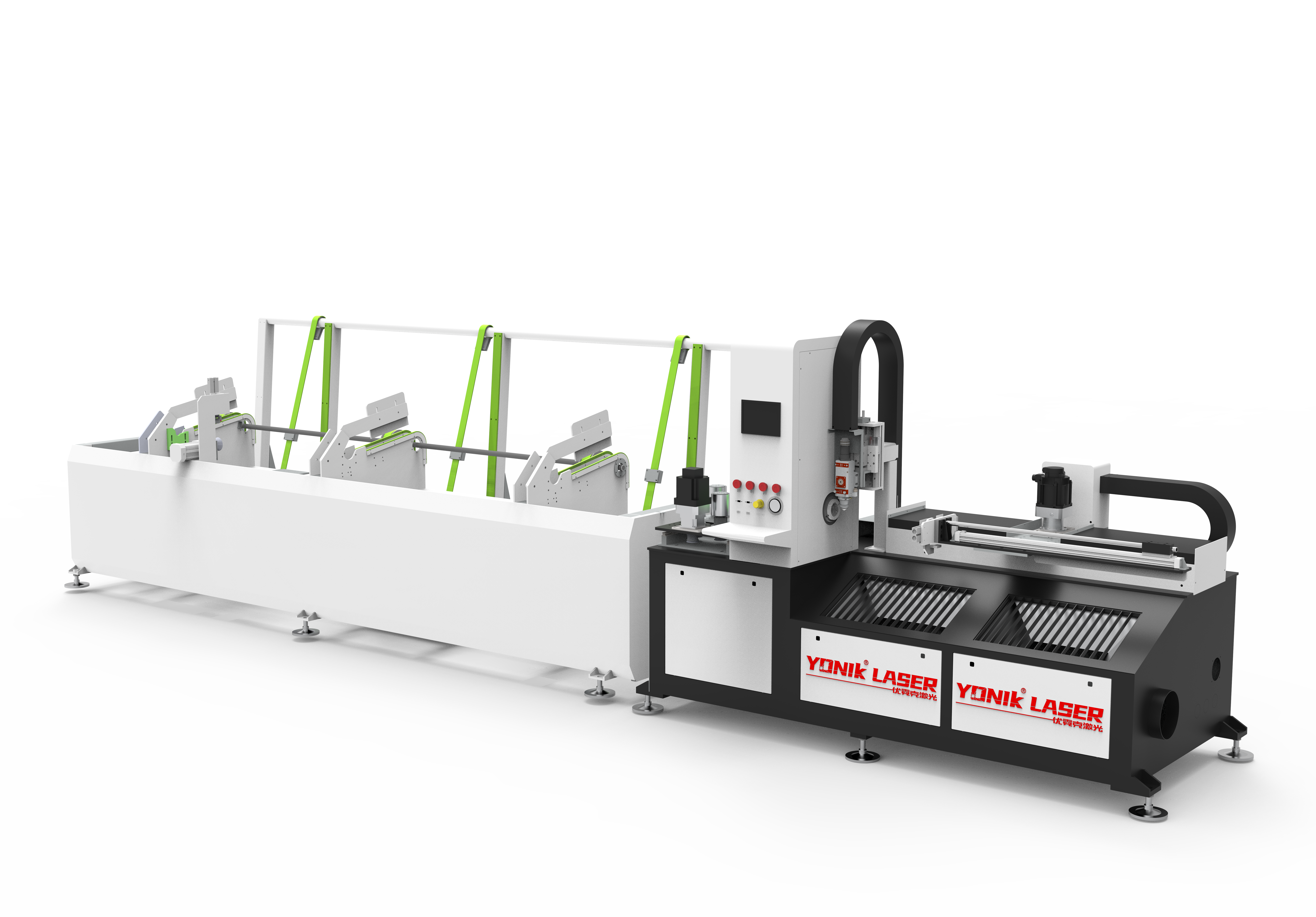

6m Laser Automatic Pipe Cutting Machine For Carbon Steel Stainless Steel Round Pipe Cutting
Fully automatic feeding rack, which can realize automatic feeding of the whole bundle, saving time and effort;
Servo motor fixed-length cutting, fast speed and high precision;
With slag extraction device to ensure that the inside of the pipe is clean and free of slag.
Technical Parameter
| YONIK-6004JA | YONIK-6007JA | YONIK-6009JA | ||
Profiling Cutting Sizes | Profile Length≤6500mm, Φ5mm≤Round Pipe Diameter≤φ40mm | Profile Length≤6500mm, 5mm≤Round Pipe Diameter≤φ68mm | Profile Length≤6500mm, Φ5 Mm≤Round Pipe Diameter≤φ90mm | ||
Automatic Feeding Profile Size | Profile Length≤6500, Φ5mm≤Round Pipe Diameter≤φ40mm | Profile Length≤6500, 5mm≤Round Pipe Diameter≤φ68mm | Profile Length≤6500, Φ5 mm≤Round Pipe Diameter≤φ90mm | ||
Single Pipe Weight | ≤50Kg | ≤80Kg | ≤100Kg | ||
Z Axis Travel | 150 mm | 150 mm | 150 mm | ||
Tail Material | 50mm | 50mm | 50mm | ||
Y Axis Positioning Accuracy | ±0.05mm/m | ||||
Y Axis Repositioning Accuracy | ±0.03mm/m | ||||
Y Axis Max Acceleration Speed | 1.5G | ||||
Y Axis Max Speed | 85 m/min | ||||
Max Rotating Speed of Chucks | 150r/min | ||||
