Product Description

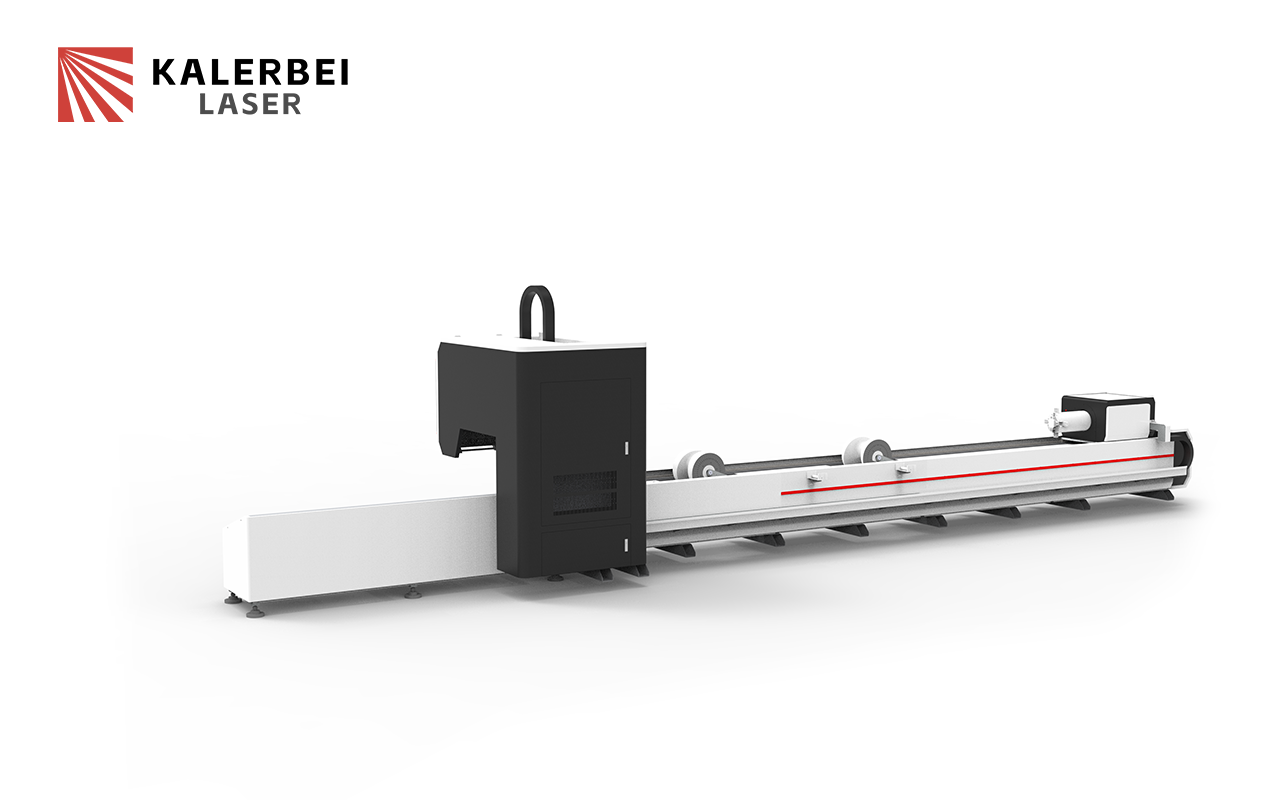

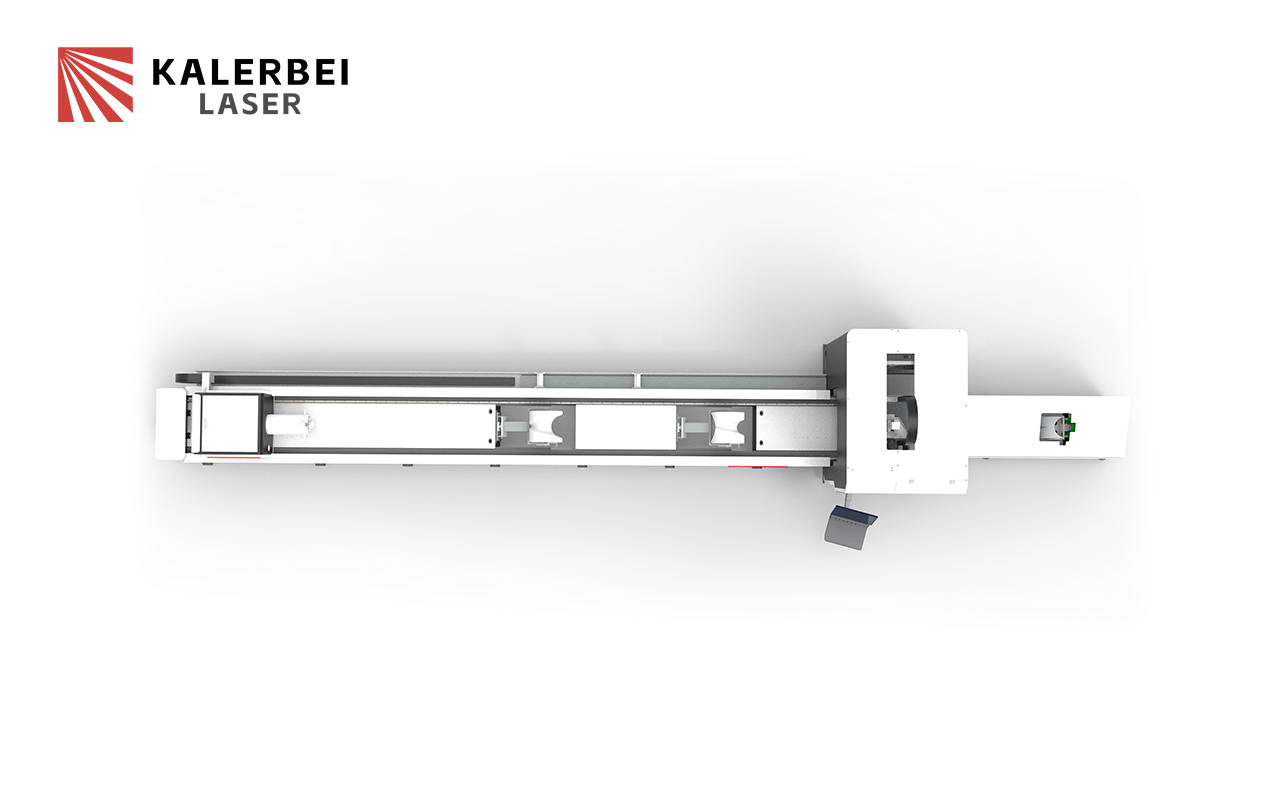

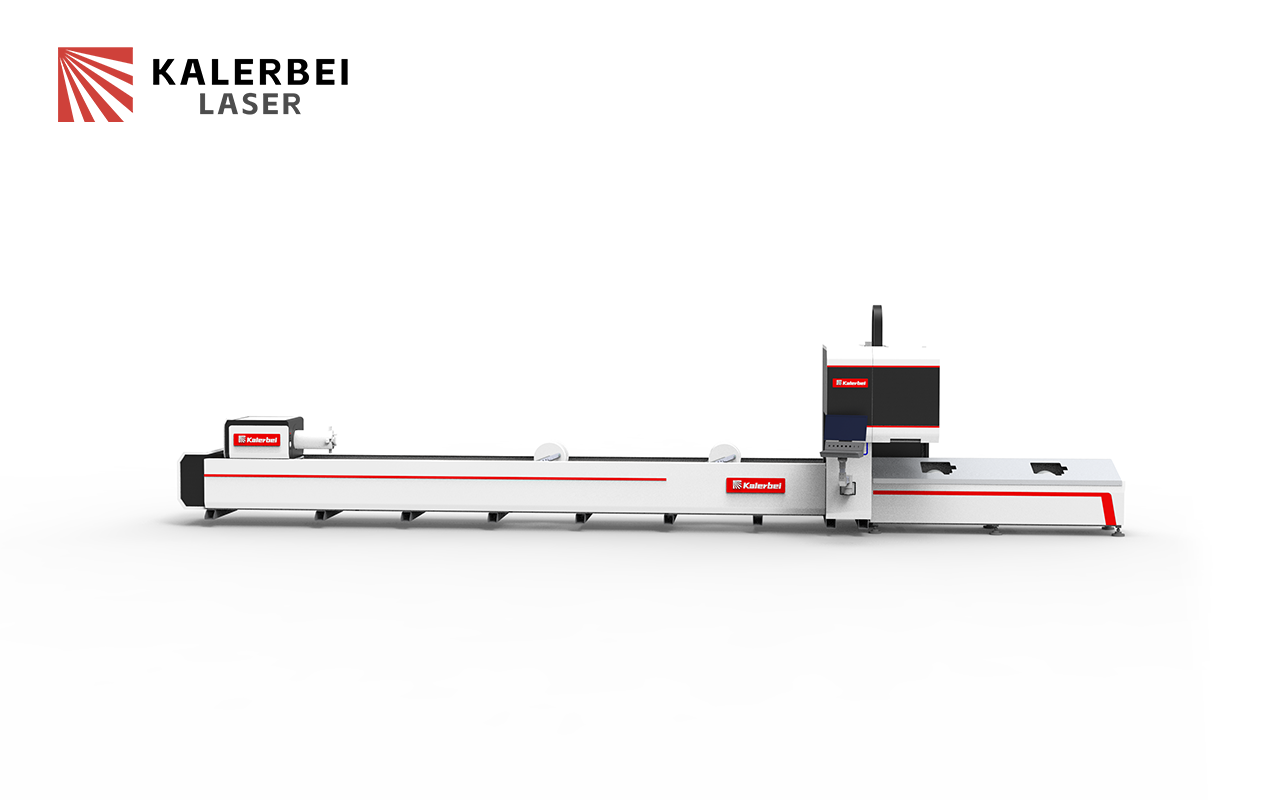

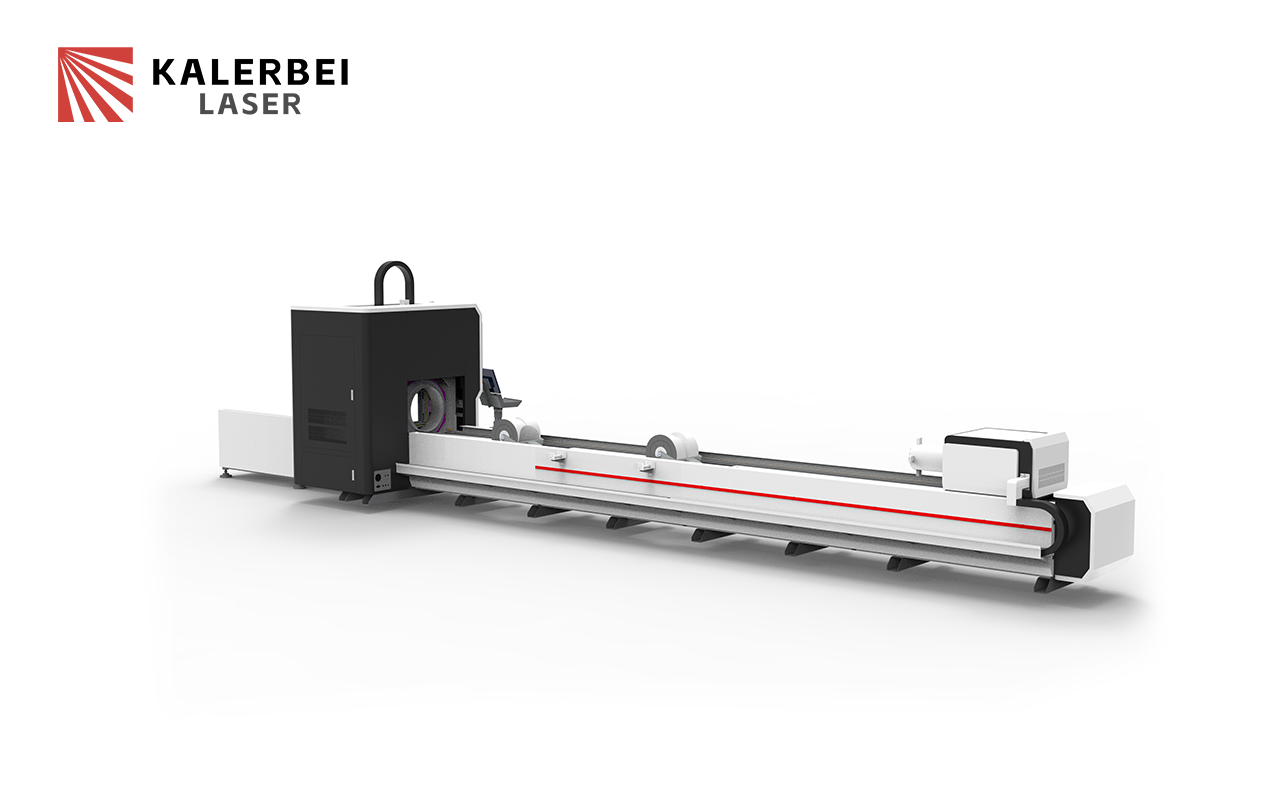

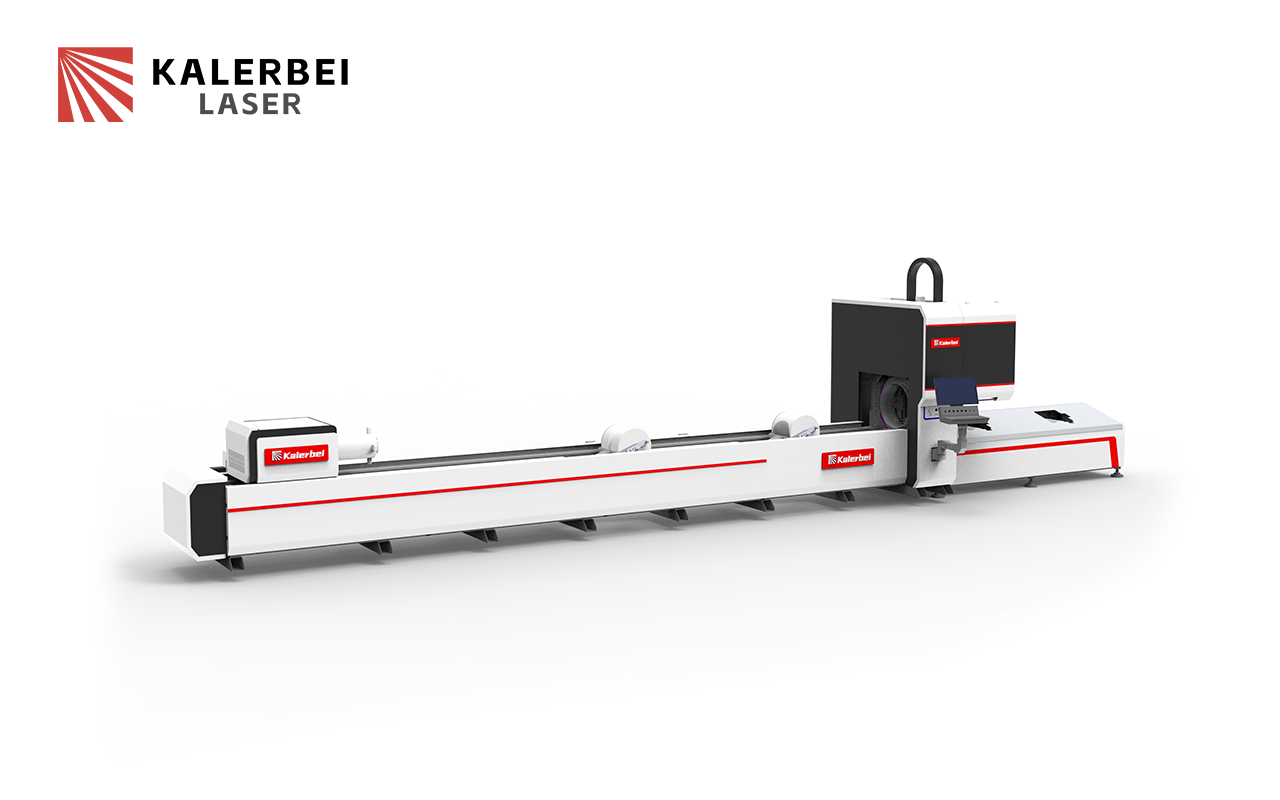

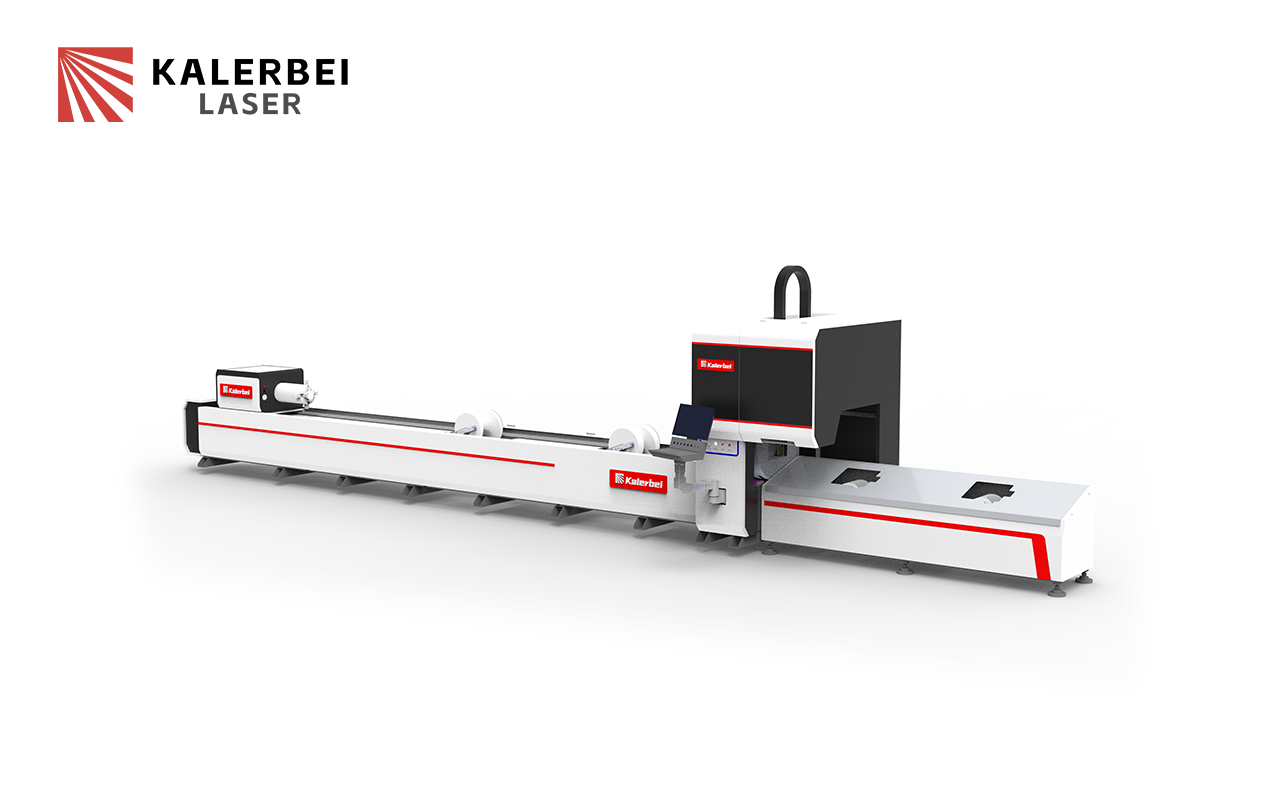

Two Chucks 6016 6035 Universal Fiber Laser Pipe Cutting Machine For Round Pipe Square Tube Beam Angle Steel Channel Steel Cutting
The chuck has a self-adjusting center function for fast centering clamping.
Cost-effective, can cut max length 6.5 meters, tail material 90mm.
Support round pipe, square pipe, rectangular pipe, oval pipe, I-beam, channel steel, angle steel.
Mode | YONIK-6016E | YONIK-6022E | YONIK-6035E |
Profile Cutting Sizes | Length≤6500mm, Φ15mm≤round pipe diameter≤Φ160mm, 15mm≤Rectangular and square tube diagonals≤ 160mm | Length≤6500mm, Φ15mm≤round pipe diameter≤Φ220mm, 15mm≤Rectangular and square tube diagonals≤ 220mm | Length≤6500mm, Φ15mm≤round pipe diameter≤Φ350mm, 15mm≤Rectangular and square tube diagonals≤ 350mm |
Single Pipe Weight | ≤160kgs | ≤240kg | ≤480kg |
X Axis Travel | 240mm | 240mm | 400mm |
Z Axis Travel | 180mm | 180mm | 300mm |
Tail Waste | 90mm | 100mm | 150mm |
X/Y/Z Axis Positioning Accuracy | ±0.05mm/m | ||
X/Y/Z Axis Repositioning Accuracy | ±0.03mm/m | ||
Maximum Acceleration of Three-chuck Walking | 1G | ||
Maximum Speed of Three Chucks | 85m/min | ||
Maximum Rotating Speed of Three Chucks | 100r/min | ||
Other machine lengths and clamping pipe diameters can be customized, optional automatic feeding | |||
