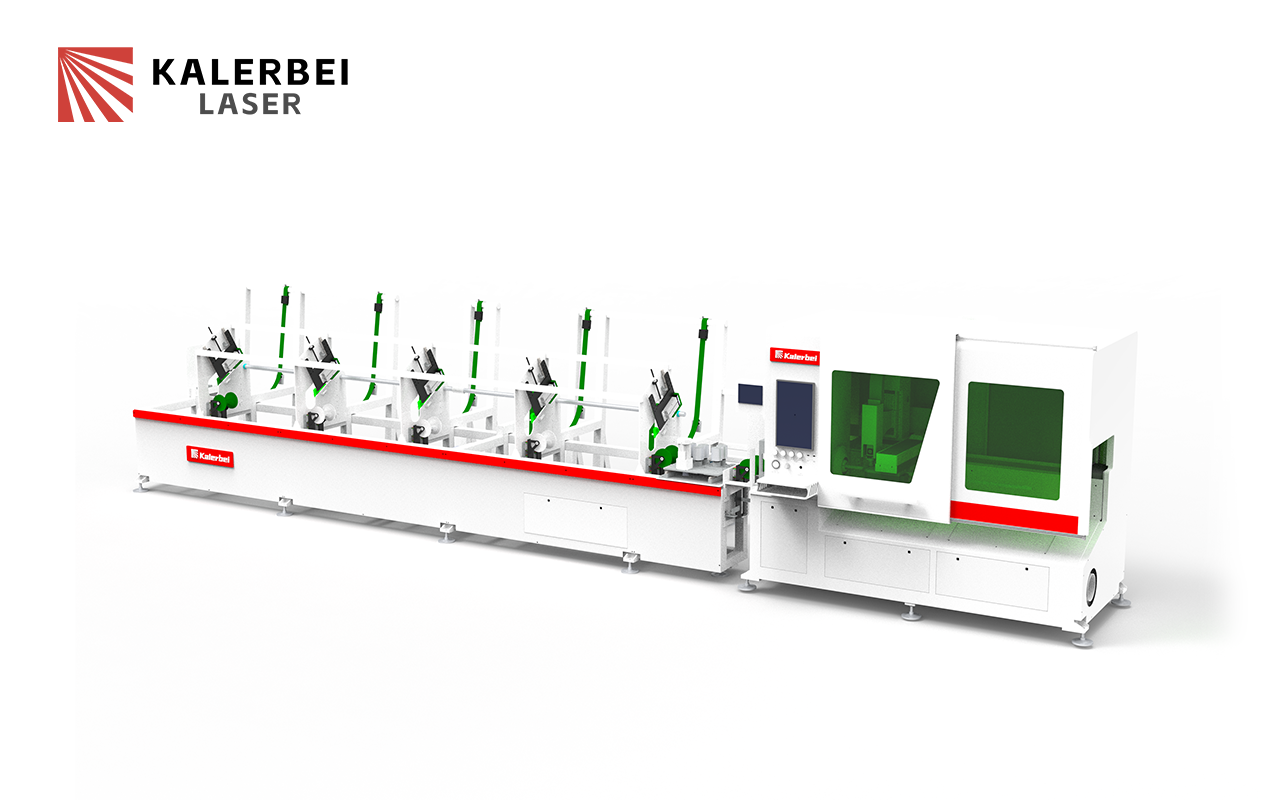

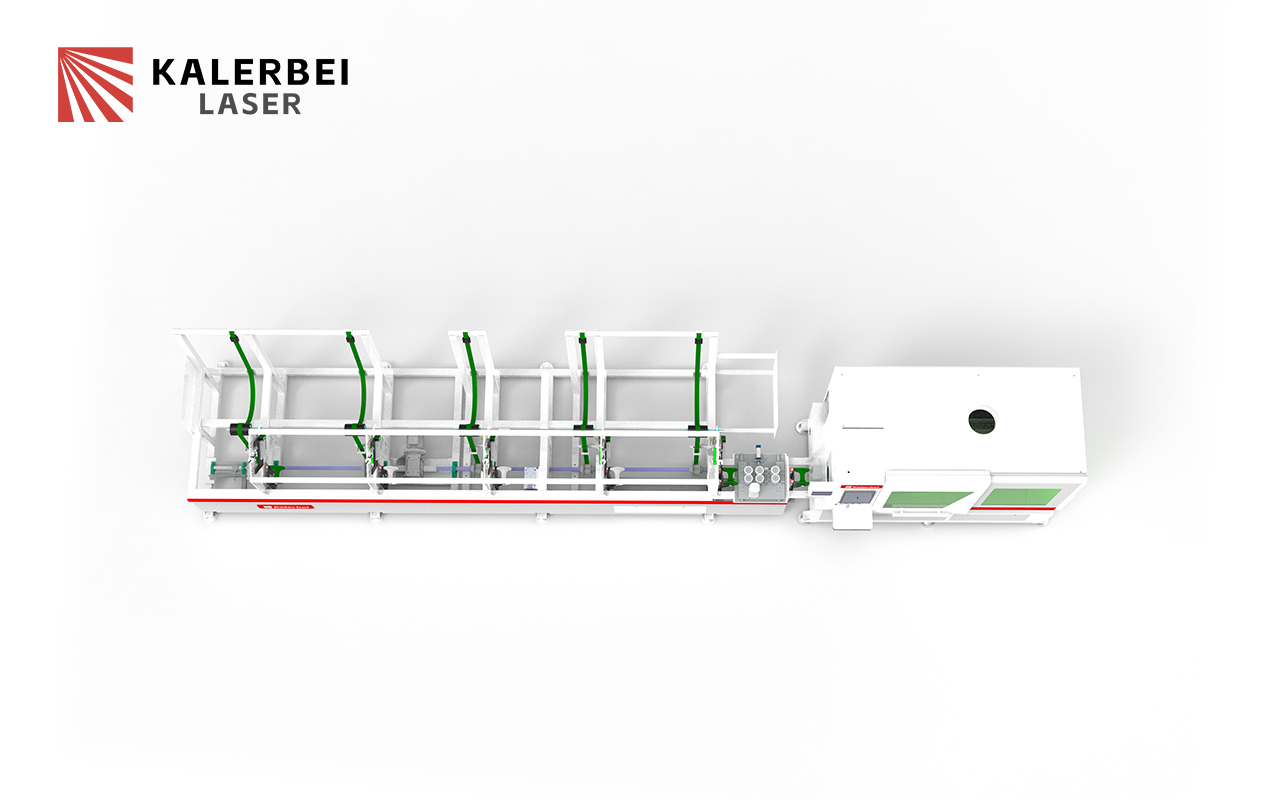

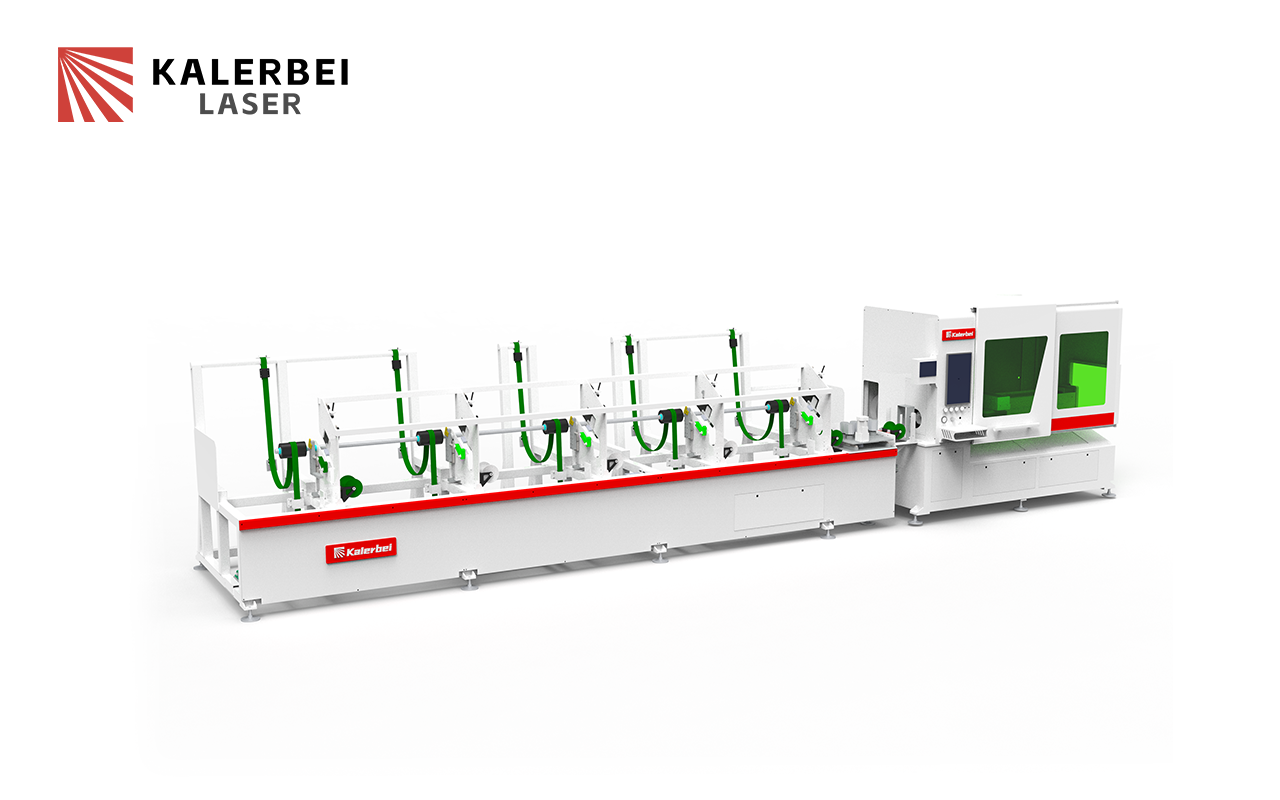

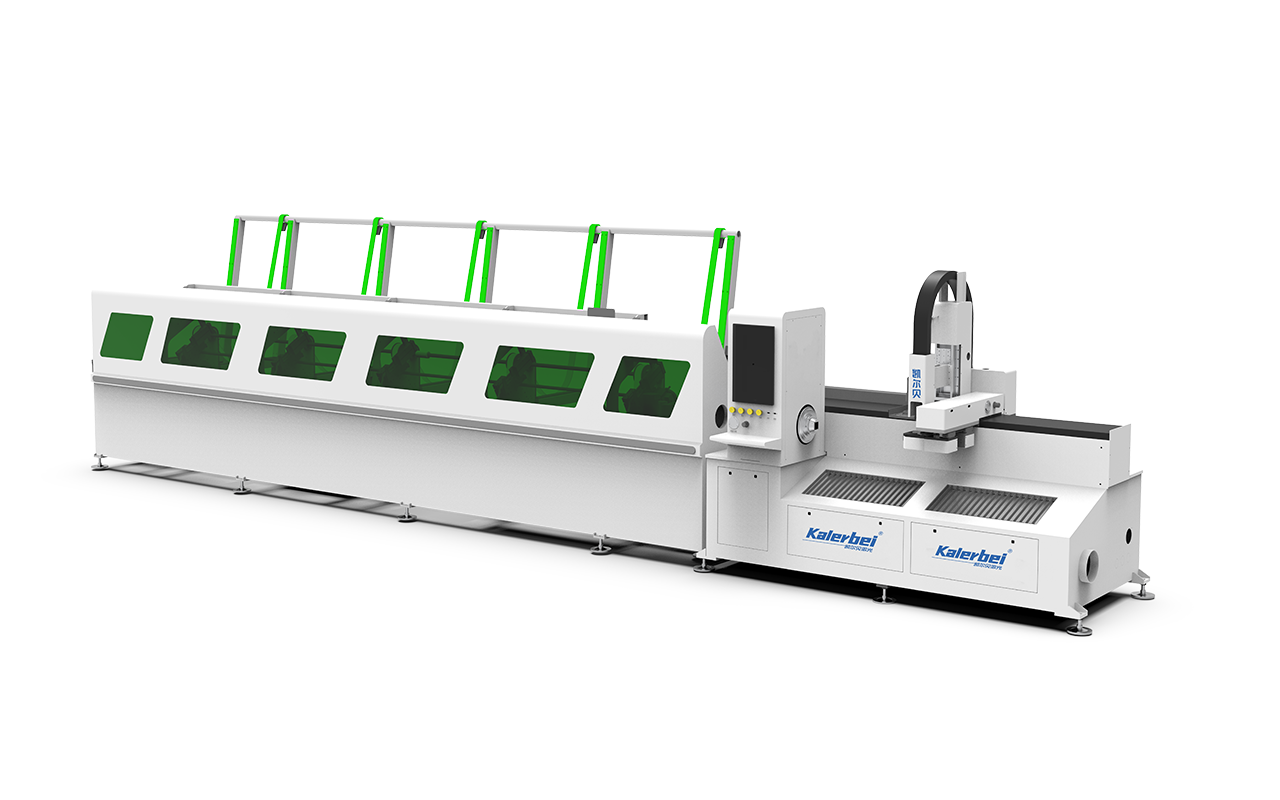

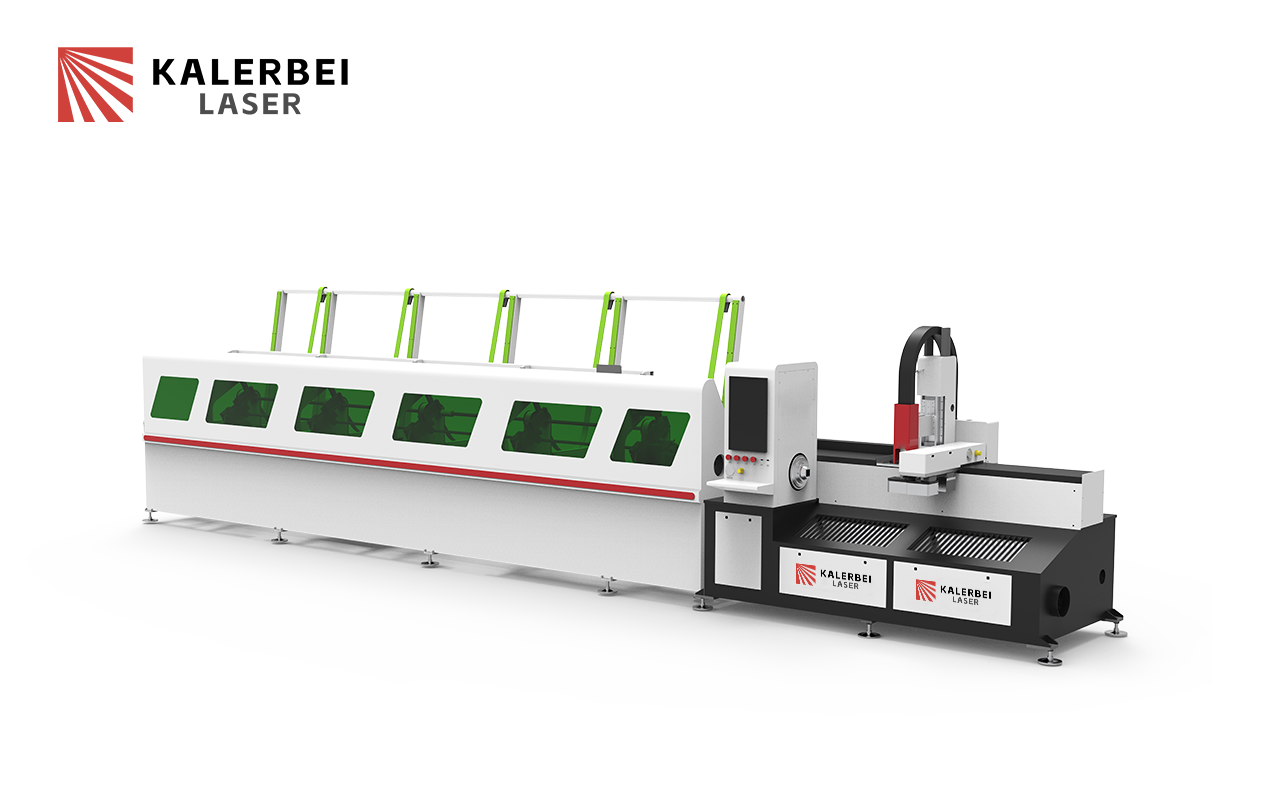

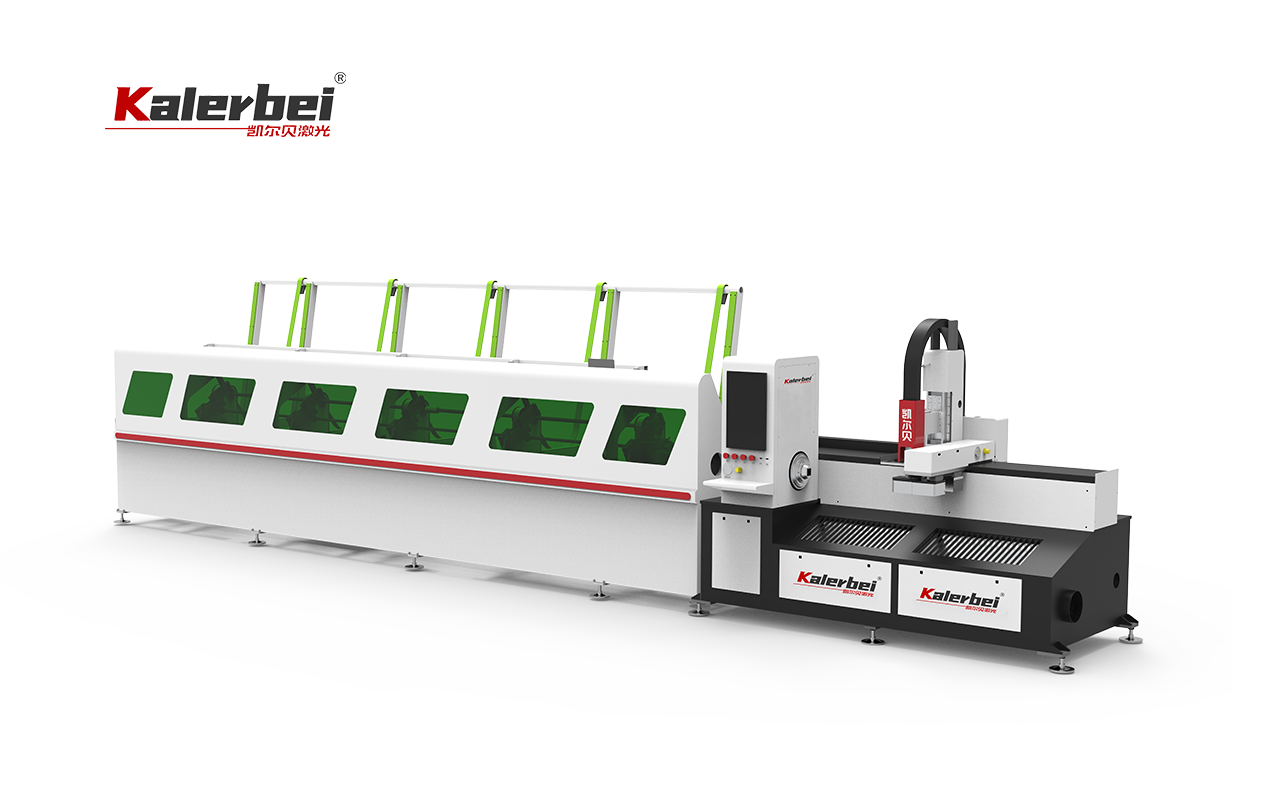

KA Series Automatic Feeding and Cutting Machine For 90mm Carbon Steel Stainless Steel Pipe Cutting

Fully automatic feeding rack with automatic height-adjusting support rollers, which can be quickly switched when changing pipe specifications

Product Description

Technical Parameter

Model	YONIK-6004KA	YONIK-6007KA			YONIK-6009KA
Profile Cutting Size	Profile Length≤6500mm, Φ5mm≤Round Pipe Diameter≤φ40mm, 5 mm≤Rectangular Tube And Square Tube Diagonal≤40mm	Profile Length≤6500mm, Φ5mm≤Round Pipe Diameter≤φ68mm, 5mm≤Rectangular Tube And Square Tube Diagonal≤68mm			Profile Length≤6500mm, Φ5mm≤Round Pipe Diameter≤φ90mm, 5mm≤Rectangular Tube And Square Tube Diagonal≤90mm
Automatic Feeding Profile Size	Profile Length≤6500mm, Φ5mm≤Round Pipe Diameter≤φ40mm, 5mm≤Rectangular Tube And Square Tube Diagonal≤40mm	Profile Length≤6500mm, Φ5mm≤Round Pipe Diameter≤φ68mm, 5mm≤Rectangular Tube And Square Tube Diagonal≤68mm			Profile Length≤6500mm, Φ5mm≤Round Pipe Diameter≤φ68mm, 5mm≤Rectangular Tube And Square Tube Diagonal≤68mm
Single Pipe Weight	≤50Kg	≤80Kg			≤100Kg
X Axis Travel	150 mm	150 mm			150mm
Z Axis Travel	150 mm	150 mm			150 mm
Tail Material	50mm		50mm	50mm
X/Y/Z Axis Positioning Accuracy	±0.05mm/m
X/Y/Z Axis Repositioning Accuracy	±0.03mm/m
Y Axis Max Acceleration Speed	1.5G
Y Axis Max Speed	85 m/min
Max Rotating Speed of Chucks	150r/min
