Product Description

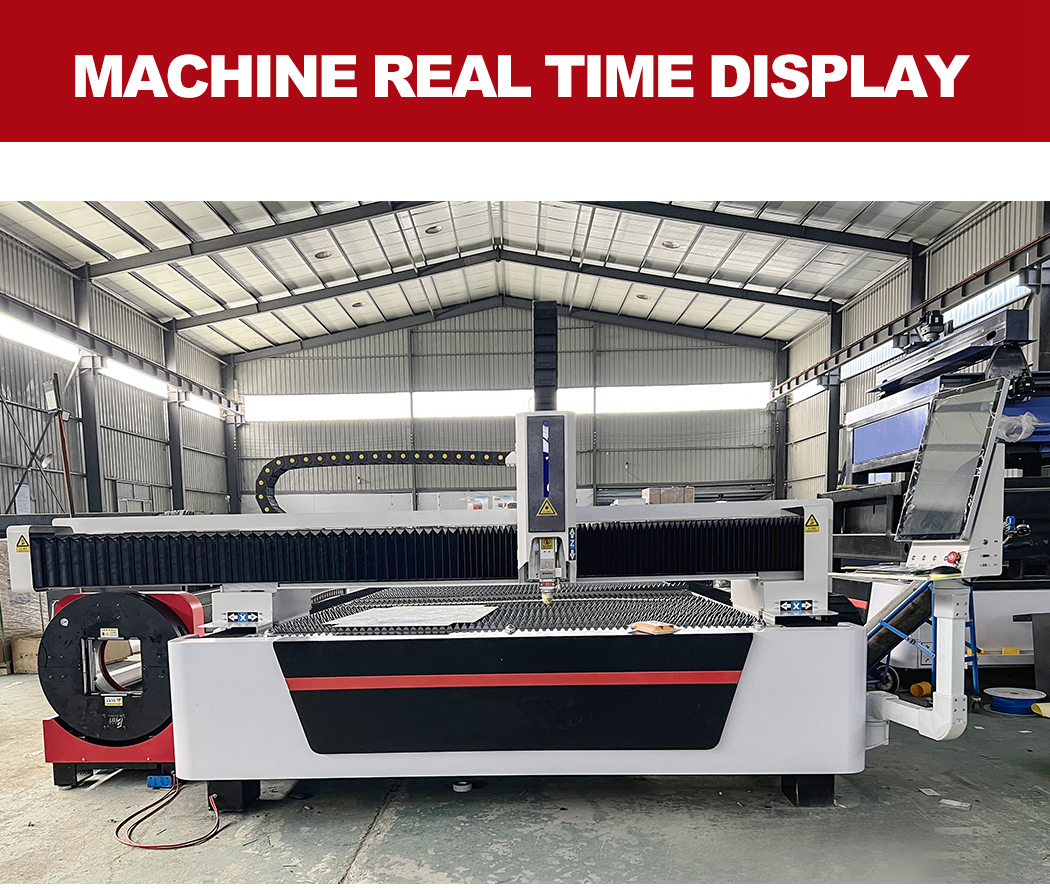

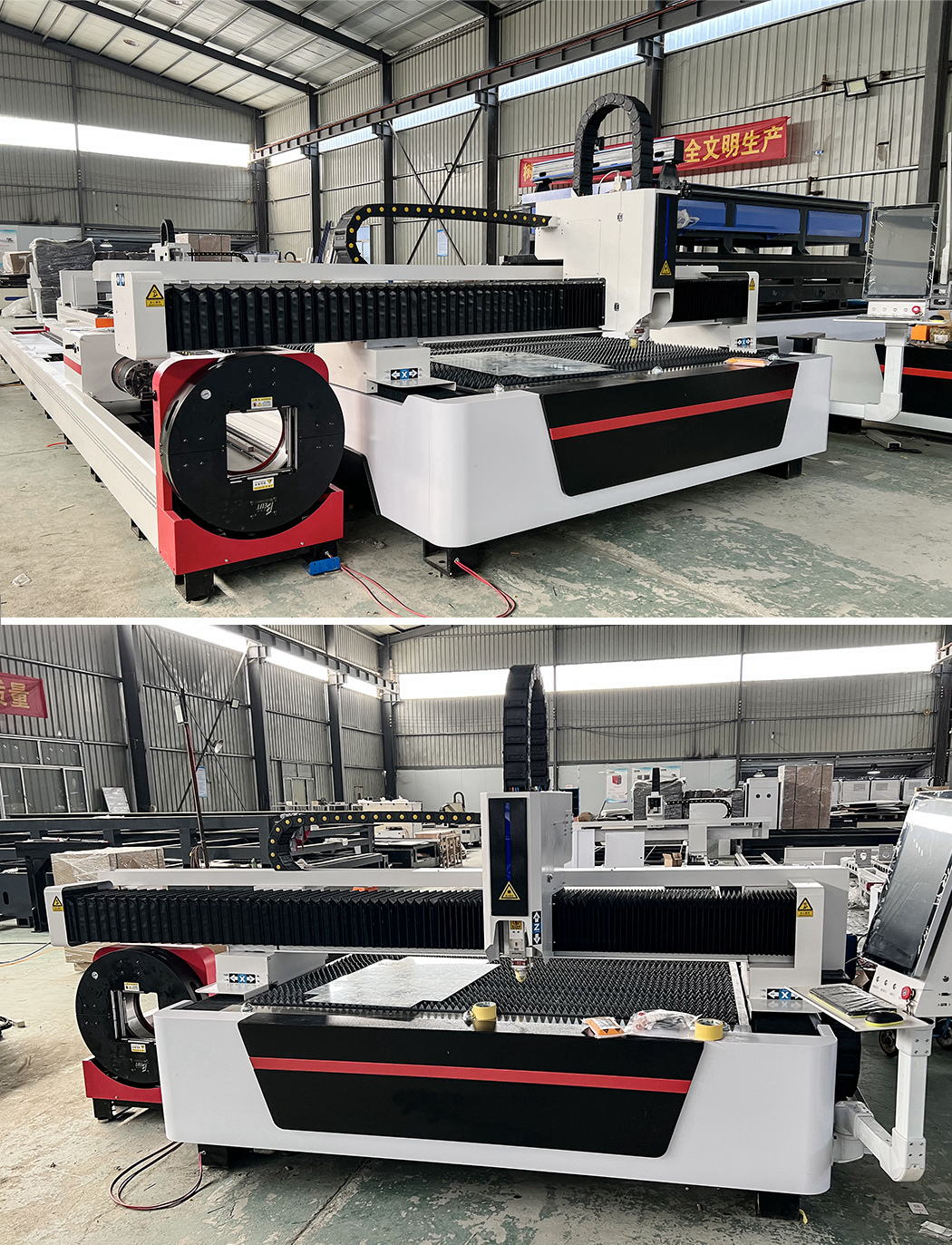

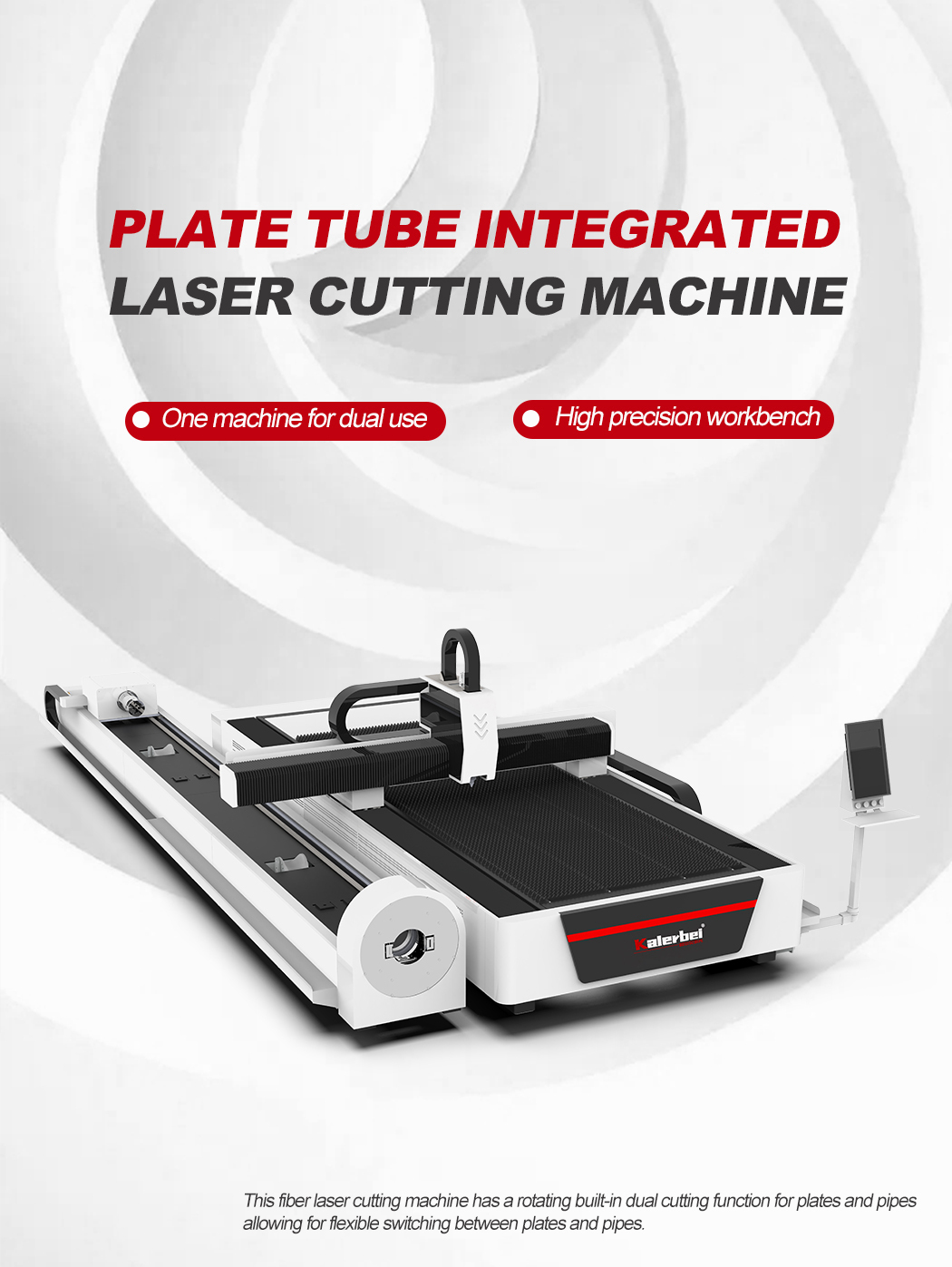

1000W 1500w 2000w 3000w Fiber Laser Cutting Machine 1325 with rotary device tube cutter

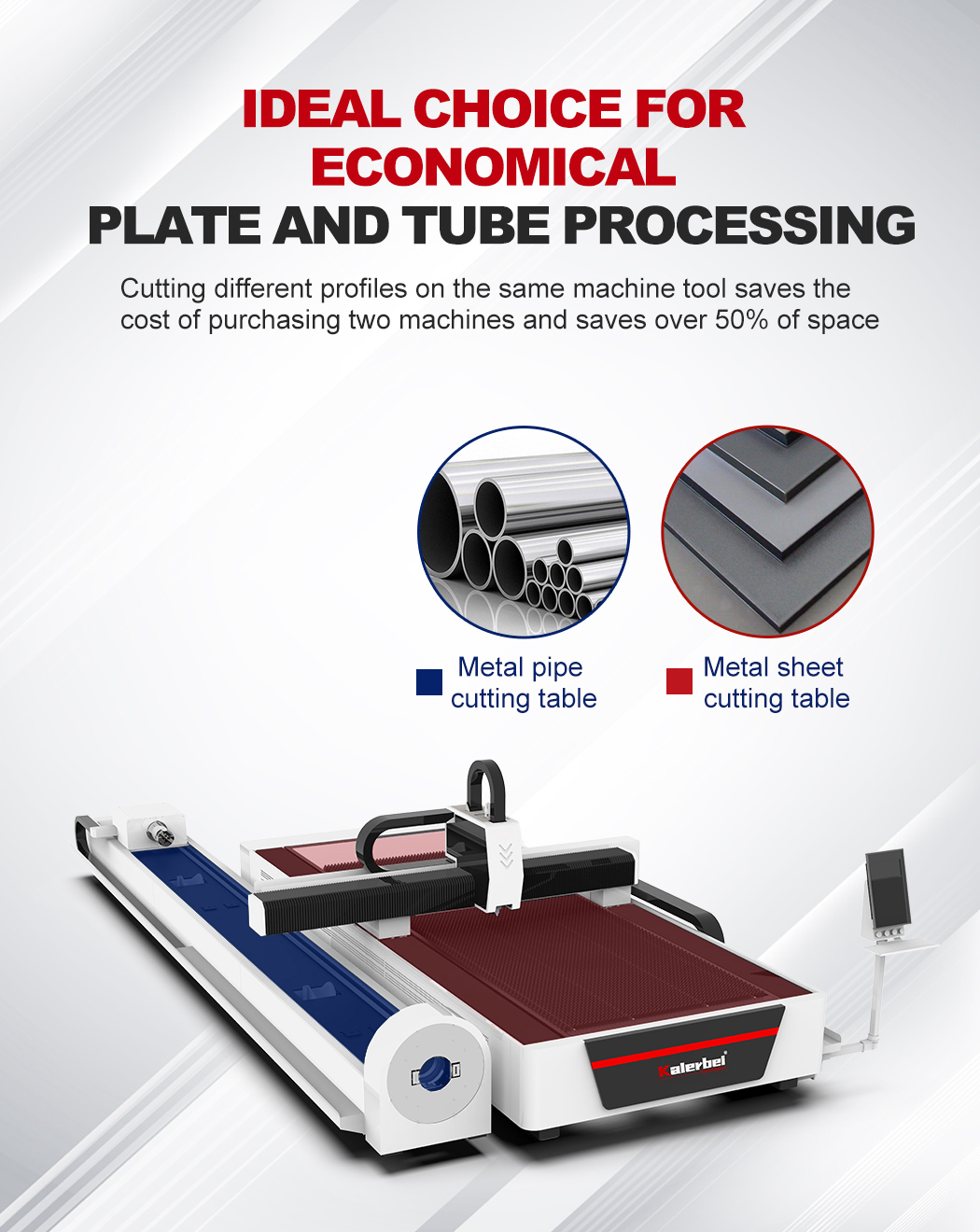

Double cutting function of sheet and tube, flexible switching of sheet and tube
One machine is multi-purpose, reducing the floor space and saving the input cost

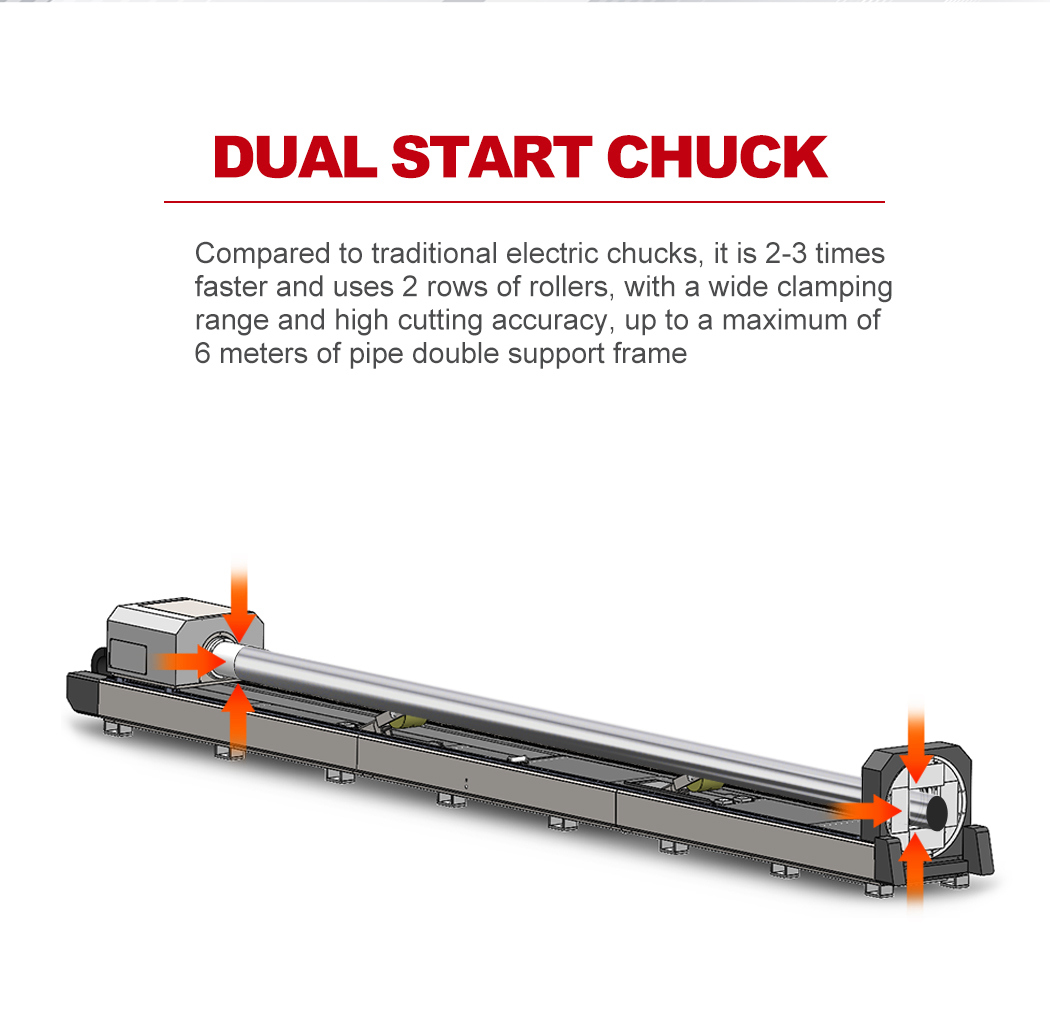

Self-centering, full-stroke chuck, easy to complete the clamping and positioning of the pipe
Technical Parameter
Model | 1530 | 2040 | 2560 |
Cutting Area | 1500*3000mm | 2000*4000mm | 2500*6000mm |
Machine Positioning Accuracy | ±0.05mm/min | ||
Machine Repositioning Accuracy | ±0.03mm/min | ||
Max Acceleration Speed | 1G | ||
Maximum Positioning Speed | 80m/min | ||
The Size Of The Processed Pipe | Length ≤6500mm, Φ15mm≤ round pipe diameter ≤220mm, 15mm≤Rectangular and square tube diagonals≤220mm | ||
Single Pipe Weight | ≤240kgs | ||

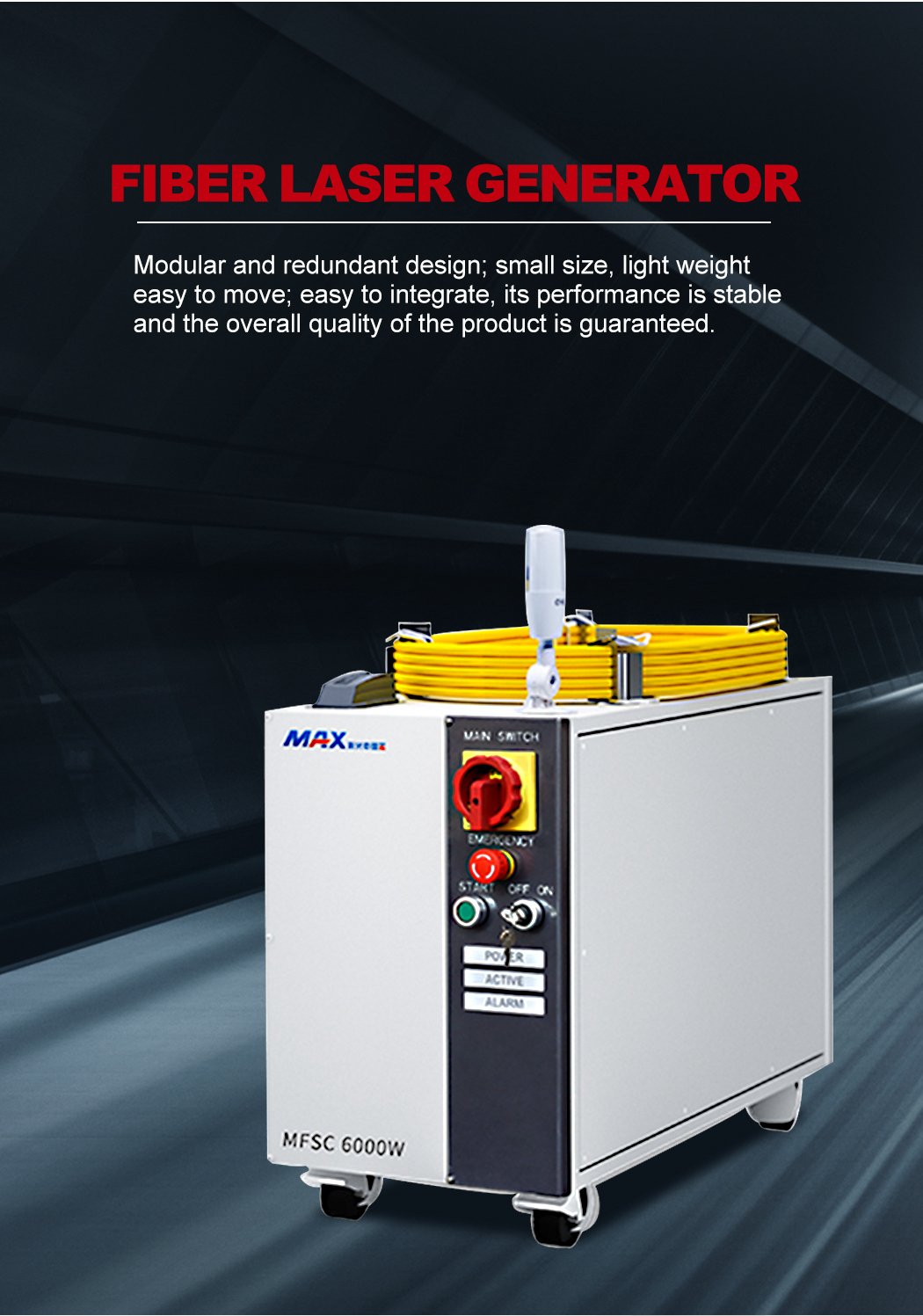

Laser Power | 1000W-6000W | ||
Other work area and pipe ,tube sizes can be customized | |||
