Product Description

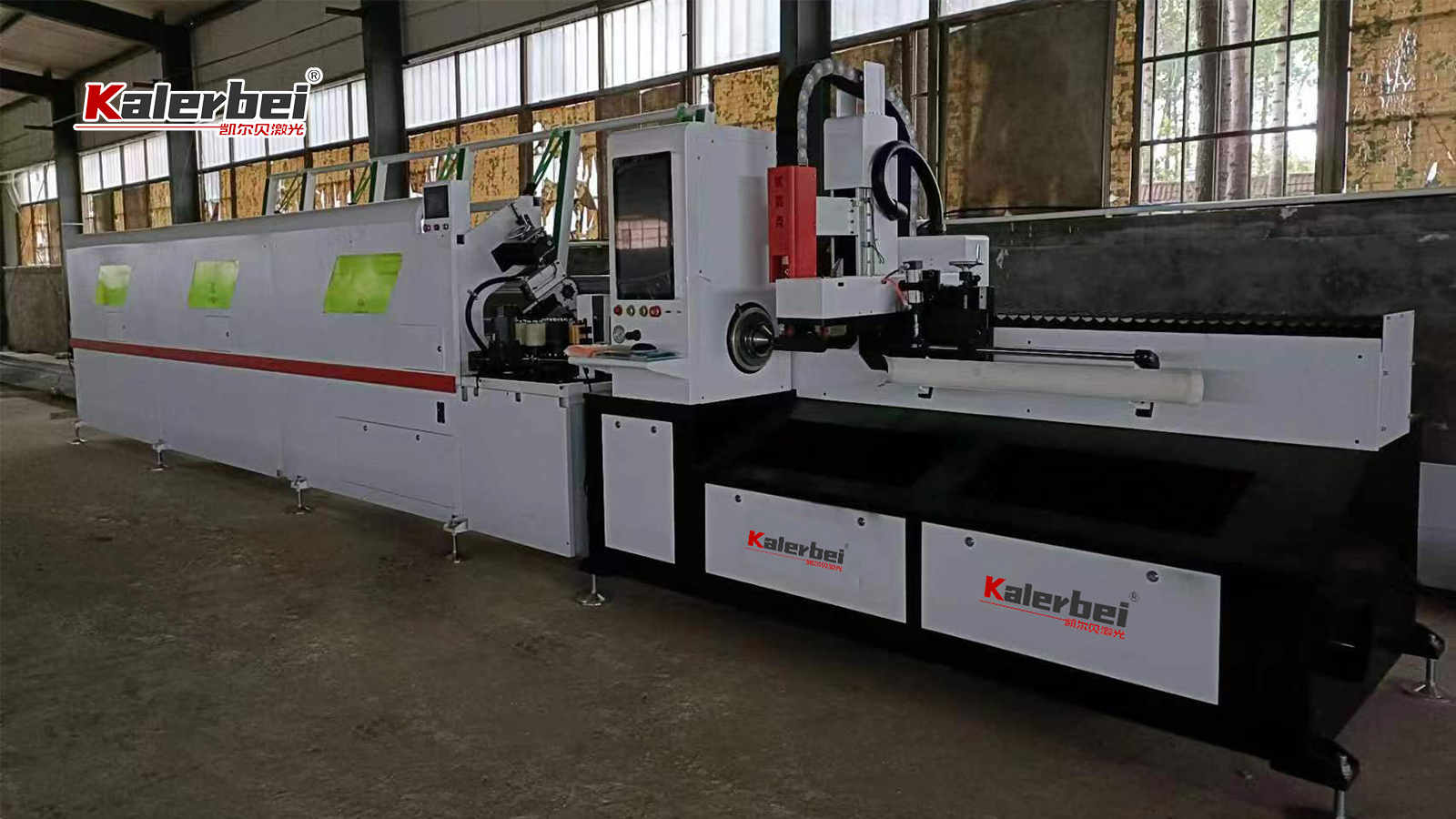

6m Automatic Laser Pipe Feeding And Cutting Machine Supplier In China Low Prices
Fully automatic feeding rack with automatic height-adjusting support rollers, which can be quickly switched when changing pipe specifications;
The feeder is equipped with a pipe clamping function, which meets the processing requirements of high-precision through holes and is suitable for multi-hole processing;
A single feeding material can reach 1.2 meters, reducing the feeding material and speeding up the cutting.
Technical Parameter
| KELBEI-6004KA | KELBEI-6007KA | KELBEI-6009KA | ||
Profile Cutting Size | Profile Length≤6500mm, Φ5mm≤Round Pipe Diameter≤φ40mm, 5 mm≤Rectangular Tube And Square Tube Diagonal≤40mm | Profile Length≤6500mm, Φ5mm≤Round Pipe Diameter≤φ68mm, 5mm≤Rectangular Tube And Square Tube Diagonal≤68mm | Profile Length≤6500mm, Φ5mm≤Round Pipe Diameter≤φ90mm, 5mm≤Rectangular Tube And Square Tube Diagonal≤90mm | ||
Automatic Feeding Profile Size | Profile Length≤6500mm, Φ5mm≤Round Pipe Diameter≤φ40mm, 5mm≤Rectangular Tube And Square Tube Diagonal≤40mm | Profile Length≤6500mm, Φ5mm≤Round Pipe Diameter≤φ68mm, 5mm≤Rectangular Tube And Square Tube Diagonal≤68mm | Profile Length≤6500mm, Φ5mm≤Round Pipe Diameter≤φ68mm, 5mm≤Rectangular Tube And Square Tube Diagonal≤68mm | ||
Single Pipe Weight | ≤50Kg | ≤80Kg | ≤100Kg | ||
X Axis Travel | 150 mm | 150 mm | 150mm | ||
Z Axis Travel | 150 mm | 150 mm | 150 mm | ||
Tail Material | 50mm | 50mm | 50mm | ||
X/Y/Z Axis Positioning Accuracy | ±0.05mm/m | ||||
X/Y/Z Axis Repositioning Accuracy | ±0.03mm/m | ||||
Y Axis Max Acceleration Speed | 1.5G | ||||
Y Axis Max Speed | 85 m/min | ||||
Max Rotating Speed of Chucks | 150r/min | ||||
